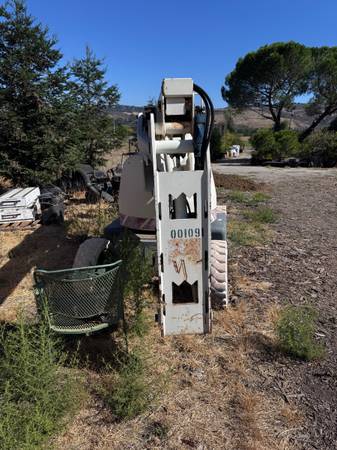

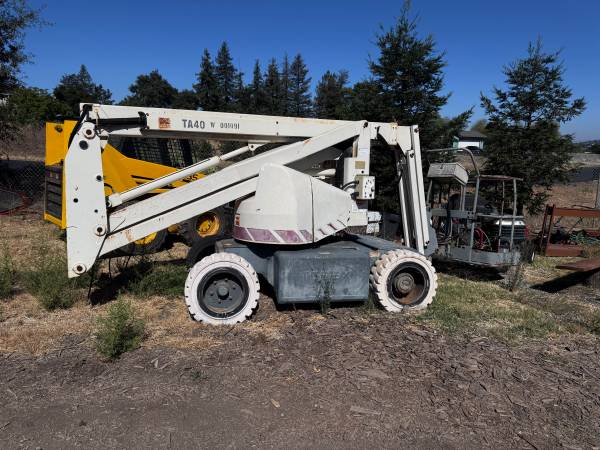

2000 Terex Articulating Boomlift Electric TA40 Need work - $4,500 (san jose south)
McKean Rd near Almaden Expressway
QR Code Link to This Post
The Terex TA40 is an articulating telescopic boom lift designed for maneuverability in tight work spaces, offering a combination of vertical and horizontal reach.
It can use for all type of construction works like painting, framing or farming to reach higher trees.
The platform offers a 180 degrees rotation, enhancing the operator’s ability to position accurately.
I changed all the batteries in 2024 and it doesn’t work so someone can spend time to fix it.
Serial # 16470
Model: TA40
Year: 2000
Maximum working height: 46 feet
Platform Height: 30 feet
Horizontal Outreach: 27 feet
Platform Capacity: 500 lbs
Travel/stowed drive speed (booms stowed): up to 3 MPH
Max operating wind speed for platform: 28 MPH wind limit
Platform Rotation: 180 degrees
Jib Length: 4 feet with 139 degrees vertical range of motion.
Turntable Rotation: 355 degrees non-continuous
Wheelbase: 5’3”
Ground Clearance: 3.5 inches
Turning radius: 10’6”
Gradeability: up to 30%
Wheel size: 22x7x17.75 Solid, non-marking
Max travel speed: 3.3 Mph
Equipment weight: 14,000 lbs
Equipment dimensions:
Length: 17 feet
Width: 4.9 feet
Height: 6.5 feet
Ground Clearance: 9.85 inches
Engine fuel Type: battery
The Equipment uses a 48 Volt battery pack
Standard battery capacity listed: 175 Ampere-hours (Ah) at 48V
Charger: 24A onboard smart charger
Hydraulic Fluid Capacity: 4 gallons
Features:
Zero tailswing and front arm swing in both stowed and raised positions
Self-leveling platform with proportional joystick controls
AC power to platform and thumb rocker steer
Tilt, descent, and travel alarms for enhanced safety
Telematics-ready with Lift Connect integration
Quiet operation: ideal for indoor or noise-restricted areas (warehouses, malls, schools, hospitals)
Zero emissions: safe for indoor work, no exhaust fumes
Low operating cost: Electric is cheaper than diesel or gas, and fewer moving parts mean less maintenance
Smooth, precise control: electric drive gives steady proportional movement and fine positioning
Excellent reach in tight spaces: the articulating arm lets you reach up and over obsacles like pipes, beams, or equipment
Good horizontal outreach: about 27 feet reach, useful for working around buildings or machinery
Compact stowed size: easier to transport and fit through narrow areas compared to telescopic lifts.
Dual control stations: can be operated from the ground or platform
Simple drive system: electric traction motors and fewer hydraulic components reduce leaks and breakdowns
Low wear and tear: no engine oil changes or fuel filters to replace
Strong build: Terex Aerials were known for solid steel booms and rugged chassis, often lasting decades with proper care.
lease come to San Jose, California to inspect it. Bring your mechanic, It is a used equipment, I sell AS IS condition.
Address: McKean Rd, San Jose, CA 95120
Thanks and have a wonderful day.
