DATRON M8 CUBE CNC Machine - $180,000 (Salem)
condition:
excellent
engine hours (total):
1032
make / manufacturer:
Datron
model name / number:
M8 Cube
size / dimensions:
69” x 69” x 77”
QR Code Link to This Post
Features:
2021 DATRON M8 Cube
Only 1,032 spindle runtime hours
7,300 total machine runtime hours
Integrated camera system

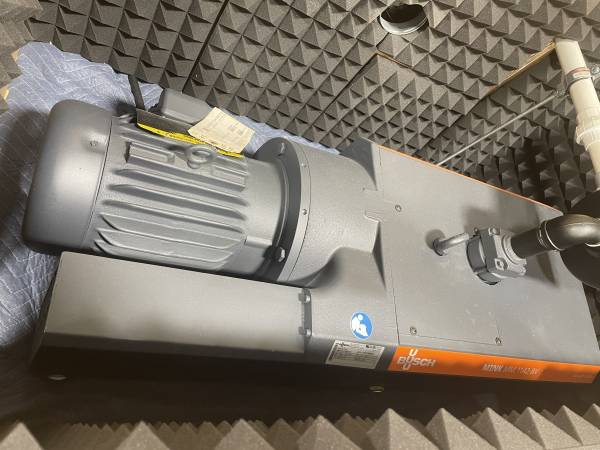

Includes 2024 Busch MINK MM 1142 BV vacuum pump
All maintenance performed by authorized DATRON service technicians
Well maintained and ready for production
Excellent for precision machining of plastics, aluminum, composites, and other materials
Professionally maintained by DATRON service with documented maintenance history.
Great opportunity to purchase a well-maintained DATRON M8 Cube with low spindle hours and a newer 2024 Busch vacuum pump included.
- 2 kwatt (2.7 hp) high frequency Spindle up to 60,000 rpm
- High Precision 3D Touch Probe (.01mm/.0004" accuracy)
- Next control operating software
- Polymeric concrete table w/ cut-out for vertical clamping
- Standard 6mm collet with optional sizes up to 8mm max.
- 15-tool automatic tool changer unit w/ tool length sensor
- Conical centers for quick, repeatable mounting of jobs
- Integrated air & vacuum ports to mount fixtures quickly
- Ergonomic side terminal for easy machine operation
- Handheld remote control with machine override functions
- Machine status indicated by LED lights within the gantry
- Integrated camera setup system
- 2024 Busch MINK MM 1142 BV vacuum pump
- Spray Mist (Alcohol or Oil) Cooling System
- Touch Screen - 23” touch screen offers a visual interface with the next software
Travel-1,020 x 830 x 245 mm (40” x 33” x 10″) (X, Y, Z)
Spindle-Up to 60,000 RPM Spindle
Feed Up to 22 m/min (866 in/min)
Standard Accuracy
ISO 230 Standard X,Y Positional +/- 0.0006” Repeatability +/- 0.0004” (mean values)
Linear Scale Accuracy ISO 230 Standard X,Y Positional +/- 0.0006" Repeatability +/- 0.0004" (mean values)
Tool Changer Up to 143 stations automatic tool changer
Control System DATRON next
Working Area 1,000 x 700 x 200 mm (39” x 27.5” x 7.5”)
Footprint 1,740 x 1,740 x 1,950 mm (69” x 69” x 77”) (W x D x H)
Weight approx. 1,300 kg (2,866 lbs.)
Machining Table Polymeric concrete table with a cut out option for vertical part mounting
Touch Screen 23” touch screen offers a visual interface with the next software
Power 400 volts three phase or 240 volts three phase with optional transformer
