185 watts rated solar panels - $35 (fairfield / vacaville)
QR Code Link to This Post
Solidly built. Mc4 connections. I have 14. Asking $35 each.
• Original ratings (STC):
• Open-circuit voltage (Uoc / Voc) ≈ 44.8 V
• Maximum-power voltage (Umpp / Vmpp) ≈ 36.5 V

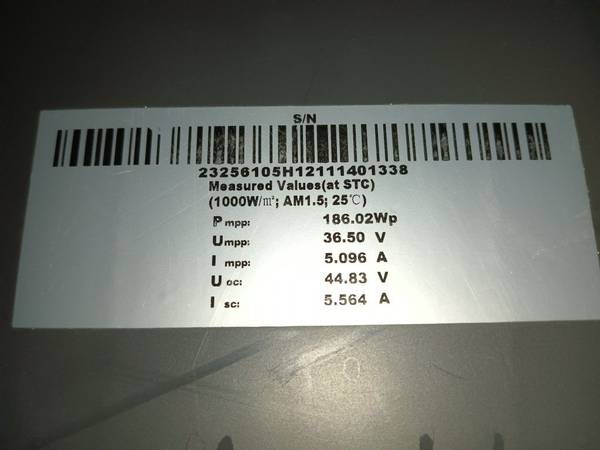

• Specs match: 185 Wp (tolerance –0/+5%), Umpp ~36.5 V, Impp ~5.09 A, Uoc 44.8 V, Isc 5.47 A, max system voltage 600 VDC (US version), Class C, 10 A fuse, monocrystalline 72-cell (5”/~125 mm cells). Measured values on the second sticker are slightly above rated Which is a good thing.
Weight and size of the Schüco MPE 185 MS 05 panel:
• Dimensions: 1,581 × 809 × 42 mm (approximately 62.2 × 31.9 × 1.65 inches)
• Weight: 15 kg (approximately 33.1 lbs)
