RAB Lighting NDICLED3 - 3 Position LED Housing Fixture - 3.5”x 3.5” Sq - $80 (mission district)
QR Code Link to This Post

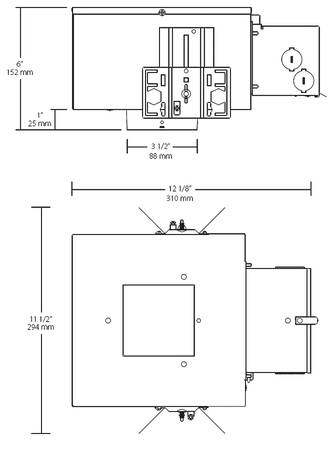

RAB Lighting NDLED 3.5” x 3.5” square downlight fixture. IC-rated 3.5 -inch square 15W LED housing with 3000K dimming and standard 90 CRI trim. Perfect for modern residential or commercial installations where a clean, square aesthetic is required.
Please note this is the rough-in framework and integrated LED driver component only. Finishing trim modules and cones are sold separately by the manufacturer.

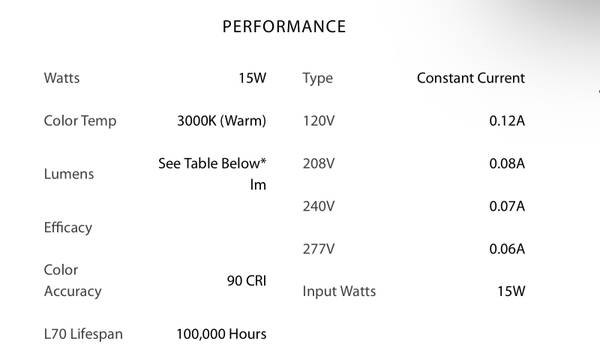

Features & Specifications
• 3-in-1 housing accommodates downlight, adjustable or wall washer
• IC-rated: Certified air tight, suitable for direct contact with insulation.
• UL-rated: Suitable for wet locations in a covered ceiling
• Aperture Size: 3-Inch Square Downlight
• Wattage: 15W (Energy-Efficient Constant Current Driver)
• Color Temperature: 3000K (Warm White)
• Color Rendering Index (CRI): High 90 CRI for superior color accuracy. • 2-step u'-v' Circle Tolerance, previously referred to as 2-step MacAdam Ellipse, achieves consistent fixture-to-fixture color (ANSI standard C78.377.2015)
• Driver / Voltage Compatibility: Constant Current, Class 2, Universal 120-277V, 50/60Hz, 120V: 0.12A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
• Dimming Driver: Universal dimming driver supporting TRIAC, ELV, and 0-10V control systems
• Lifespan Rating: Industrial-grade 100,000-Hour LED Lifespan based on IESlm-80 results and TM-21 calculations
