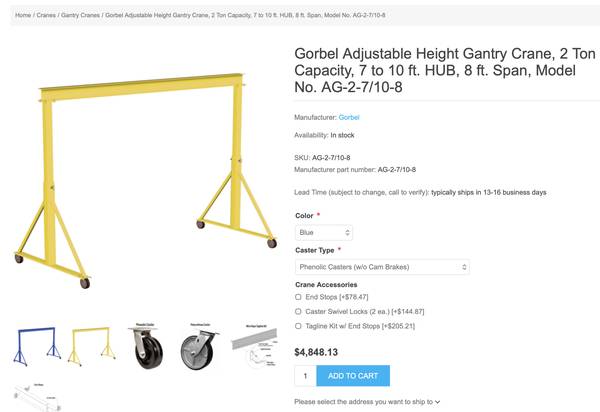

Gorbel Adjustable Height Gantry Crane, 2 Ton Capacity, 7 to 10 ft - $2,500 (san carlos)
condition:
good
make / manufacturer:
Gorbel
model name / number:
AG-2-7/10-8
size / dimensions:
See description
QR Code Link to This Post
Specifications:
Capacity: 2-Ton
Span: 8 ft.
Height Under Boom (HUB): 7 to 10 ft. (adjustable)
Overall Height: 10 ft. 8-1/8 in. (max)
I-Beam Size: W8 @ 18 lbs/ft
I-Beam Depth: 8-1/8 in.
I-Beam Flange Width: 5-1/4 in.
Clear Span: 6 ft. 9-5/8 in.
Gantry Tread: 6 ft. 6 in.
Crane Material: Steel
Shipping Weight (Overall Weight): 625 lbs.
Provides the most flexible lifting solution of any style gantry crane.
Easily adjusted to provide different lifting heights.
Bolted beam to upright connection ensures safety.
Molded phenolic casters are standard and allow for easy movement.
Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
