110V Paste Liquid Filling Machine 30-300ml #160410 - $589 (Rancho Cucamonga)
QR Code Link to This Post
*Cash Preferred*

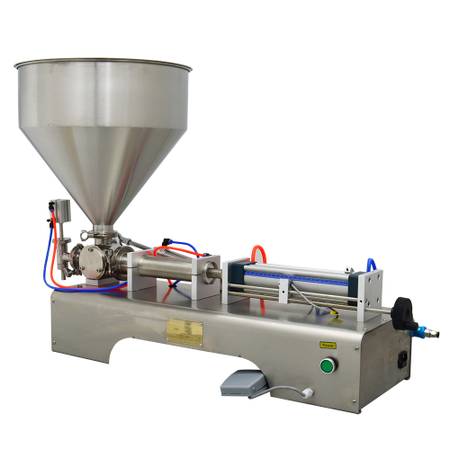

The semi-automatic piston filling machine produced by our company has the advantages of simple and reasonable structure, high precision, convenient cleaning and simple operation. The contact area with the material is made of 304 stainless steel, in line with GMP requirements. The sealing parts are made of PTFE and silica gel. They have the advantages of corrosion resistance, aging resistance, high temperature resistance, good sealing and so on. They are ideal filling equipment for food, pharmaceutical, chemical, daily chemical, petroleum, pesticide and other industries.
This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily. It is recommended to use the foot switch for filling at the beginning.
Features:
1.This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.
2.The filling volume range is between 30ml - 300ml. And the machine should connect air compressor for working.First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.
3.This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to 0.4-0.9Mpa range.
4.For the materials with large filling viscosity and poor fluidity, which need heating or pressure or mixing filling, please consult us to recommend purchasing the mixing model, heating model and heating mixing machine.
Parameters:
Voltage: 110V/60Hz
Material: The surface is stainless steel
Pneumatic
Filling volume (ml): 30-300ml
Filling accuracy (FS) ±0.5%
Production capacity (cycle/min): 1-25
Applicable tolerance (m3/min): ≥0.1
Product size: 30.3*11*26.37in(77*28*67cm)
Net weight: 23.5kg （51.8 lb）
Applicable pressure (Mpa): 0.4-0.9
