Branson/TYM 2400H Compact Tractor/Backhoe w/accessories- Low Hours - $19,500 (petaluma)
QR Code Link to This Post
BL100S Front End Bucket Loader
BH100 Backhoe (Sub-Frame Mount)
Land Pride RCR1248 48" 3-point PTO Rotary Mower/Brush Hogger
Titan 48" 3-point Box Scraper
60 Gallon 3-point PTO Ag Sprayer with 10' Boom and Spray Wand with 75' hose, including Delavan PTO pump
Agri Ease Fork blades (clamp onto bucket)
2" Hitch Receiver adapter, for moving trailers with the bucket, includes a 2" ball hitch mount
It's been a great work machine for us as we did a major remodel here in Penngrove. Now that we're done, we no longer need it. See below for detailed specifications.
Tractor Spec is:
Engine & Performance

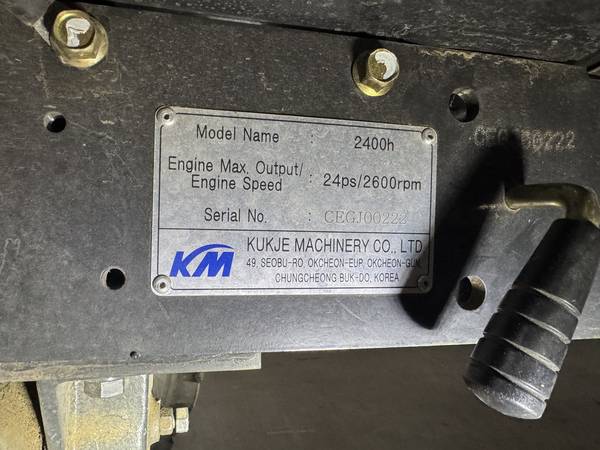

• Engine: Kukje / A1100N2 3-cylinder, 4-cycle natural aspiration diesel engine (approx. 1,175 cc / 67.2 cu. in.).
• Horsepower: 24 gross horsepower at 2,600–2,800 rpm.
• PTO Horsepower: ~18 hp depending on rating and transmission configuration.
• Fuel Capacity: 6.07 to 6.1 gallons.
• Cold Start: Includes glow plugs and an engine block heater.
Transmission & Drivetrain
• Transmission Type: Hydrostatic transmission (HST) with 2 speed ranges (High and Low).
• Drive: 4-wheel drive (4WD) with selectable engagement.
• Brakes: Wet multi-disc brakes.
• Steering: Hydrostatic power steering.
• Top Travel Speed: Approximately 11.0 to 11.1 mph.
Hydraulics & PTO
• Hydraulic System: Dual pumps with roughly 8.3 gpm pump flow (total flow ~8.2–8.3 gpm).
• Rear PTO: 540 / 960 rpm.
• Mid PTO: 2500 rpm.
• 3-Point Hitch: Category I rear 3-point hitch with lift capacity around 1,500 lbs at the link ends.
Dimensions & Weight
• Wheelbase: 59.1 inches.
• Overall Length: ~ 106 inches.
• Overall Width: ~40 inches depending on tire configuration.
• Height with ROPS: 88 inches (folding roll-over protective structure).
• Ground Clearance: 13 inches.
• Operating Weight: ~1,810 to 2,023 lbs (base dry weight around 1,792–1,810 lbs).
Attachments & Compatibility
• Front-End Loader: Compatible with SL00 / BL100 series loaders (lifting capacity 1,300 lbs).
Backhoe Spec is:
• Maximum Digging Depth: 76 inches (1,920 mm)
• Backhoe Reach: 107.9 inches (2,740 mm)
• Loading Height: 63.8 inches (1,592 mm)
• Swing Angle: 140°
• Bucket Rotation: 180°
• Bucket Digging Force: ~2,486 lbs (1,291 kgf)
• Dipper Stick Digging Force: ~1,592 lbs (722 kgf)
Mower Spec is:
• Cutting Width: 48 inches (4 feet)
• Cutting Capacity: Up to 1-inch diameter material (grass, weeds, and small saplings)
• Tractor Compatibility: Subcompact or compact tractors up to 60 HP; Category 1 3-point hitch and Quick-Hitch compatible
• Deck Construction: Fully-welded deck (12-gauge) with a 24-inch stump jumper
• Weight: Approximately 413 lbs (with front/rear guards, driveline, and laminated tire)
• Gearbox Rating: Up to 60 HP (540 RPM), featuring a floating top link and shear bolt
