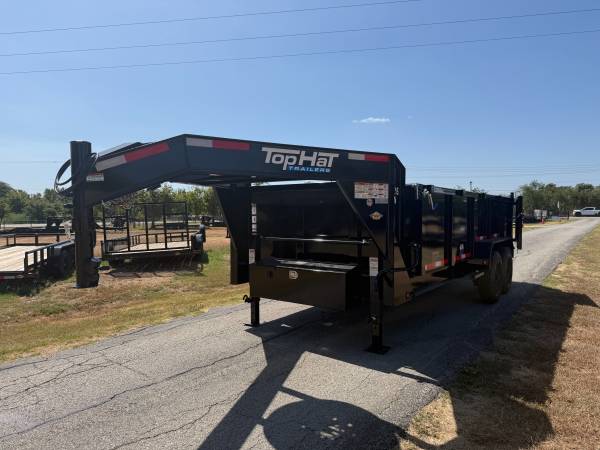

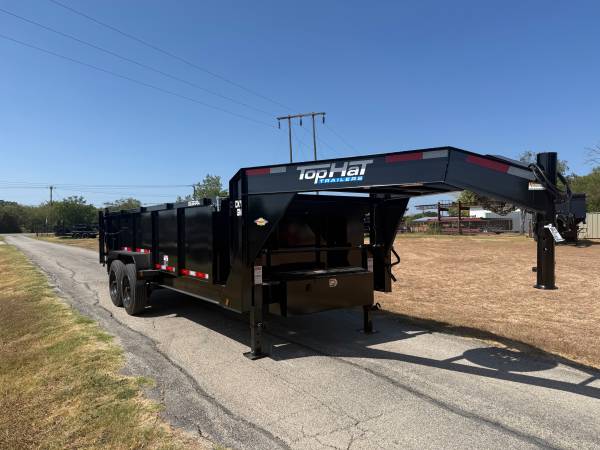

2026 TOP HAT 83″ X 16′ GOOSENECK DUMP TRAILER WITH TARP, RAMPS, SPARE - $14,750 (WEATHERFORD)
QR Code Link to This Post
ALL POSTED PRICES ON TRAILERS ARE DISCOUNTED FOR CASH OR CHECK ONLY SALES! ANY OTHER FORM OF PAYMENT THE TRAILER WILL BE SOLD AT FULL RETAIL PRICE!
14,000 GVWR
2026 TOP HAT 83" X 16' GOOSENECK DUMP TRAILER WITH 3' SIDEWALLS, TARP, RAMPS, AND SPARE 17.5K-GVWR 11,740#PLC
Options
DX Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
Ground Level Crank Kit For Spring Loaded Long Arm Retractable Tarp (3-4' Sides Only)
Motorized Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
Gas Engine Powered Pump in Lieu of Electric Pump
Spare ST215/75R/17.5 LRH on 8-Hole
Dual Hydraulic 12K Jack Replacing Dual 12K Jack
Hoist Upgrade w/10" Frame Upgrade
Telescopic Hoist ILO Scissor Hoist
Solar Battery Charger
Jumbo Step (40" Replaces 18" Side Step)
Frame Structure
Frame: 8" I-Beam
Neck & Risers: 10" I-Beam
Sides: 24" Tall 10 GA Sheet Metal w/Toprail
Floor: 7 GA Sheet Metal
Toprail: Rigid 3x2x7 GA Rectangular Tubing
Uprights: Formed Channel
Dump Body Frame: 6" Channel
Crossmembers: 3" Channel 16" OC
Standard Equipment
ST215/75R/17.5 LRH Tires on 8-Hole
8000# Dexter Oil Bath 1/2 Cambered Axles w/5/8" Lug Studs
Electric Brake on 2-Axles w/2 1/4" Brake Pads
2 5/16" Round Adjustable Coupler
Dual 10000# Drop Leg Jacks
HD Diamond Plate Fender (Double Broke)
Width: 83" Inside Box
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside
Dual Action Swing Out Doors/1 Piece Spreader Gate
Slide-N Ramp 6' Channel
5/8" D-Rings in Box (4)
Spare Rack
Sealed Flush Mount LED Lights
Side Step (Driver Side)
Wiring Harness
Lockable Battery/Pump Box
Crank Style Roll Tarp & Tie Downs
Rear Stabilizer Stands
Color: Black
Dump Components
520 Scissor Hoist 0n 14'-16'
Power Up/Power Down/Gravity Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Deep Cycle 12V Marine Battery
110 Volt-5 Amp Charger
High Sides
3' Tall Sheet Metal Sides
4' Tall Sheet Metal Sides
