Industrial Prodeva 315-S Plastic Shredder Granulator - 5 HP Baldor Motor - $1,650 (Manteca)
condition:
good
make / manufacturer:
PRODEVA
model name / number:
315-S
size / dimensions:
42 x 29 x 74
QR Code Link to This Post
One Prodeva Model 315-S industrial plastic shredder and granulator machine. Manufactured by Prodeva Inc. in Jackson Center, Ohio. Engineered to slice brittle plastics, containers, jugs, and laboratory bottles down into coarse fragments for recycling or production.
📹 Video Available:
I have video of the internal cutting assembly and the 5 HP Baldor motor drive belt spinning smoothly by hand in both directions! Message me to see the video proof of how freely this machine rotates.
Technical Specifications (From Factory Tags):
Model / Serial: Prodeva 315-S / 11414
Power Requirements: 208-230/460 Volts | 3-Phase | 60 HzDrive
Motor: Genuine USA-made Baldor Industrial Motor (Model M3615T)
Horsepower: High-Torque 5 HP (1750 R.P.M. / Frame 184T)
Electrical Box: Pre-wired with an Eaton Cutler-Hammer DH361NRK 30 Amp Heavy-Duty Fusible Safety Switch Disconnect inside a Type 3R weatherproof enclosure. Equipped with three Gould Shawmut Tri-onic TRS20R 20-amp time-delay fuses.
Drive Belt: Heavy-duty Browning Gripnotch BX46 oil and heat-resistant static dissipating V-belt.
Chassis & Internal Features:

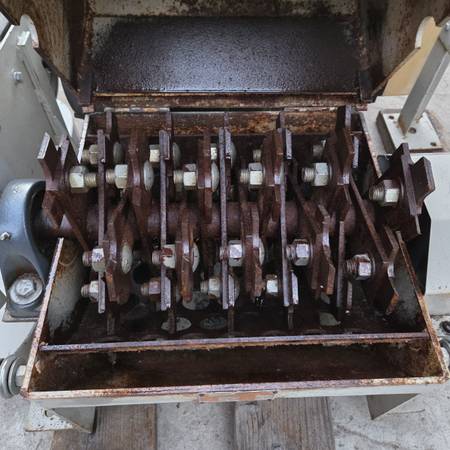

Includes a wide open-top gravity feed hopper chute with an intact rubber safety splash flap, fully guarded side-mounted dual-pulley belt drive tracking assembly, and an internal cutting chamber with heavy-duty interlocking multi-tooth steel cutting discs and a perforated lower sizing screen. Features swing-bolt tie-down latches for quick maintenance access. Internal cutting chamber has been thoroughly cleaned, scraped, and cleared of old plastic debris.

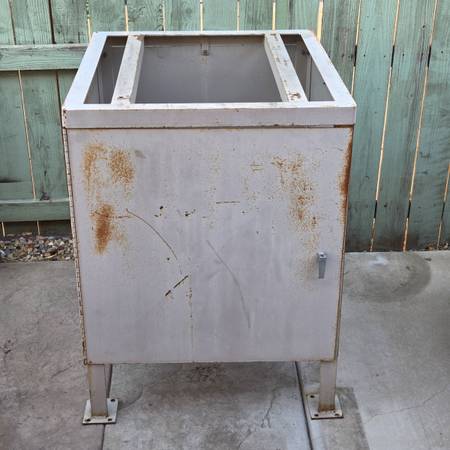

Condition: Used. Machine exhibits cosmetic surface rust, scaling, and finish weathering on the outer sheet panels and internal hopper from storage. Core structural steel framing, pillow block bearings, shaft alignment, and motor mounts are straight, solid, and mechanically uncompromised. Internal cutting teeth are fully intact with no broken or missing blades, and the assembly spins smoothly by hand. Tested working prior to storage. Sold AS-IS.
Logistics: Very dense and heavy unit (approx. 400 lbs). Currently sitting on wood blocks for easier movement. Buyer must bring a truck, trailer, or proper loading muscle/equipment to transport from the yard.
Price: $1,650 cash. Local pickup in the Manteca area. Serious inquiries only.
Contact me through Craigslist chat for quicker response. Available through email also.
Thank you.
