Definitive Technology Mythos SSA-50 5 channel passive soundbar - $375 (La Jolla)
condition:
new
make / manufacturer:
Definitive Technology
model name / number:
Mythos SSA-50 passive soundbar
QR Code Link to This Post
This is a fantastic 5 channel passive soundbar for home theater that works great with an amplifier.
Specs are below:
Core Audio Specifications
Frequency Response: 50 Hz – 30,000 Hz.
Sensitivity: 90 dB (1W @ 1 meter).
Nominal Impedance: 8 Ohms.
Recommended Amplification: 20 – 200 Watts per channel.
Crossover Setting: Definitive Technology recommends setting your receiver's crossover to 100 Hz or 120 Hz if using a subwoofer.
Driver Configuration (9 Total)
The SSA-50 features a total of nine drivers organized to handle front and surround channels:
Front Channels (Left/Center/Right):
Three 1" pure aluminum dome tweeters.
Three 4.5" BDSS high-output mid/bass drivers (axially aligned with the tweeters).
Two 4.5" BDSS full-range drivers.
Surround Channels:
Four 3.25" full-range high-output drivers with butyl rubber surrounds.
Physical Specs & Build
Dimensions: 46.25" W x 5.375" H x 4.125" D.
Weight: 31 lbs (14.06 kg).
Enclosure: Aircraft-grade extruded aluminum with a hand-polished gloss black finish.

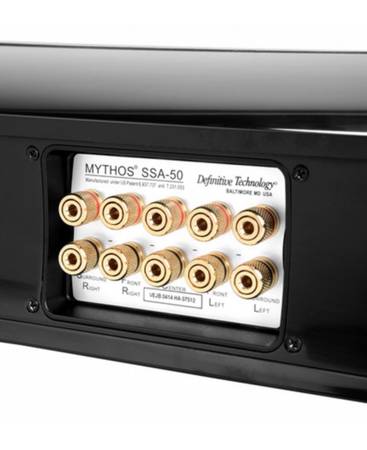

Inputs: Five pairs of 5-way gold-plated binding posts for connecting to an A/V receiver.
Included Accessories: Wall-mount bracket, leveler feet, and a wall-mounting template.
Receiver Required: This is a passive speaker system. It has no built-in amplifier and must be connected to a standard 5.1 or 7.1 channel home theater receiver.
