DDA FX Pedal PCB Pendulum Harmonic Tremolo - $75 (Hubbard)
QR Code Link to This Post
If you’re not familiar with a harmonic tremolo vs a regular tremolo. A regular tremolo modulates the volume of the signal, like what you would get from a blackface or silverface fender amp. A harmonic tremolo splits the signal and inverts the phase on half of it. Then half is sent through a high pass filter, the other half through a low pass filter. Which are modulated from a vactrol formed by a light depdendent resistor and led. Then mixed back together. The end result is closer to a vibrato IMO than the volume modulated tremolo. Theres a link to a good you tube demo of what the circuit sounds like. I left the rate led off because I find them annoying :)
https://youtube.com/shorts/1T1iR1snEpM?si=rDq3Z9YEW6CRtuvw

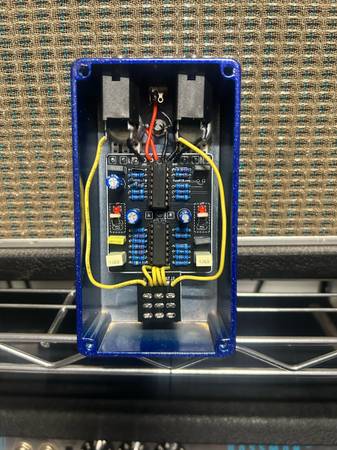

All thru hole components
True bypass
Assembled, wired, soldered by hand
Powder coated enclosure
Feel free to message me with any questions
Open to local trades
Happy to ship via paypal/venmo g&s also listed on reverb.
