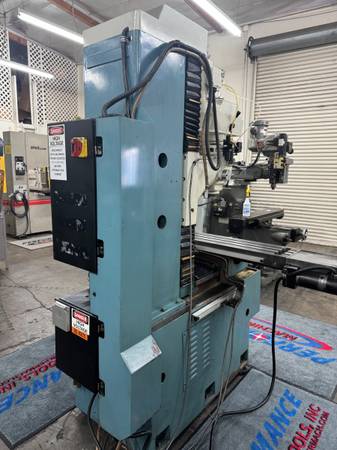

TRAK CNC BED MILL with ProtoTRAK MX3 Control - $14,900 (fremont / union city / newark)
3305Edison way
QR Code Link to This Post
SERIAL NO. 95-2127 YEAR: 1995
SPECIFICATIONS:
• Table Size – 10” x 50”
• T-Slots (width x no. X pitch) - 5/8” x 3 x 2-9/16
• Travel (X,Y,Z) - 31” x 17” x 23.5”
• Quill Diameter - 3 15/16"
• Spindle Taper - #40
• Spindle Speed Range - 70-4200 RPM
• Spindle Nose to Table - 0 - 24"
• Spindle Center to Column Face - 17.3"
• Maximum Quill Travel - 5"
• Head Swivel Right and Left - 90°
• Quill Feed Per Rev. in Auto Feed - 0.002, 0.004, 0.006 inch/rev
• Spindle motor - 3 HP
• Power Requirements - 50 HZ/60 HZ; 3 Phase; 220v; 8.6 amp
• Maximum Weight on Table - 1320 lb
• Machine Weight - 4070 lb.
• Way Surface - Dovetail X-axis; Square Ways Y and Z-axis
INCLUDES:
• ProtoTRAK MX3 CONTROL with Conversational programming
• Precision ground ballscrews in the table and saddle ensure smooth accurate contours without backlash
• One-piece bed that contacts the floor in six places for rigidity and stability
• Solid one-piece ram counterbalanced for easy positioning
• Auto lubrication system to ways and ballscrews Meehanite casting
• Way covers on the ram and saddle

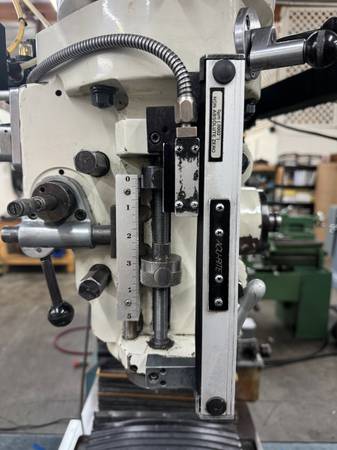

• Z-axis glass scale on the quill (ACU-RITE)
• Pushbutton AUTOMATIC Power Drawbar
• Remote Handheld Start Stop Switch
• Flood coolant system with reservoir in base
Price: $14,900
Call or text ROB: 510.760.9518
Offered by the used machinery division of PERFORMANCE MACHINE TOOLS.
3305 Edison Way
Fremont, CA 94538
office: 510.249.1000
www.permach.com
