VICTOR QL-A75 DIRECT DRIVE TURNTABLE - $1,500
QR Code Link to This Post

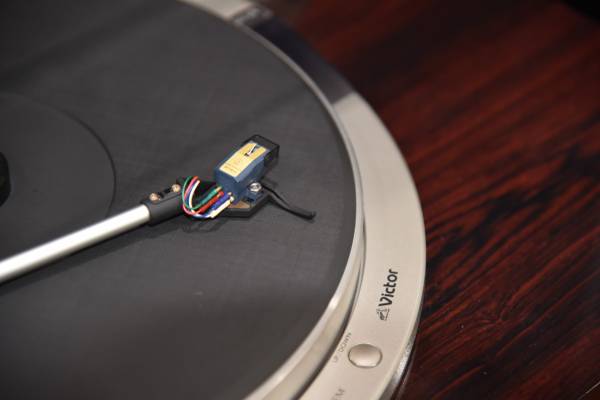

Audio-Technica ATN31E Stylus Specifications
- Frequency response: 15Hz-50kHz
- Output voltage @ 1kHz,5cm/sec: 0.4mV
- Channel separation @ 1kHz: Minimum 30dB
- Channel balance @ 1kHz: Within 1dB
- Dynamic compliance: 8.5 x 10-6 cm/dyne (100 Hz)
- Tracking force: 1.2-1.8g (nominal force 1.5g)
- Static compliance: 32 x 10-6 cm/dyne
- Load resistance: >10 ohms
- Load capacitance: 100-200pf
- Stylus: 0.15 mm nude square, 0.3 x 0.7 mil elliptical diamond

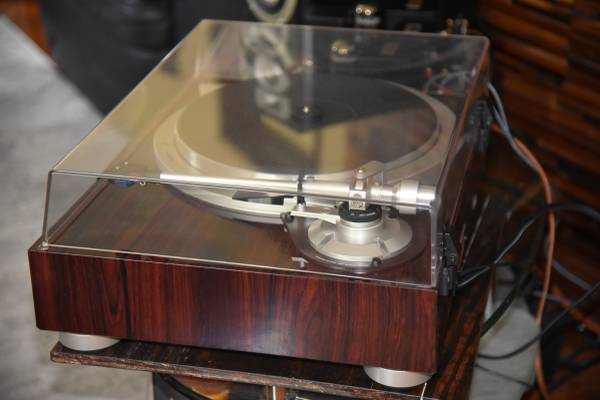

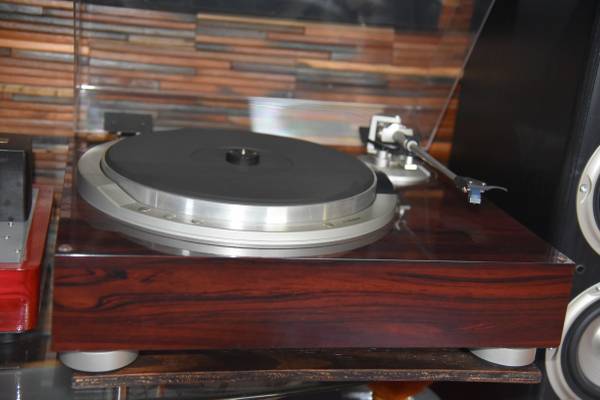

Turntable from my personal collection. Item works properly and keeps both speed well. Tonearm lift at end of record works fine. Ready for demo...
Price is $1500 FIRM. CASH ONLY.
LOCAL PICKUP IN DES PLAINES, IL
Won’t answer is it available questions. If the ad is up, it’s available. Thanks.
Scammers will be ignored.
SPECIFICATIONS:
Drive system - FG Detection Double Servo Quartz Coreless DC Direct Drive
Number of revolutions - 33 1/3, 45 rpm
Wow flutter - 0.008% (WRMS, Rotating Part FG Method)
Signal-to-noise ratio - 80dB(DIN-B)
Start-up characteristic - 0.75 sec, 1/4 rev or less
Starting torque - 1.8kg-cm
Turntable mass - 2.35 kg (Including Mat)
Inertial mass - 350kg-cm2
Load characteristic - 0% (Needle Pressure Up to 250g)
Rotational speed deviation - 0.0015%
Tone arm type - Dynamic Q dump, pipe exchange system
New Gimbal Support
Effective length - 254mm
Needle pressure variable range - 0 ~ 3.0g
Arm Height Variable Range + / - 3 mm
Cabinet finish - Mirror Finish Rose Style
External dimensions - Width 495x Height 209x Depth 419 mm
Weight - 14.0kg
