DBX DBX 160X Compressor/Limiter - $350 (concord / pleasant hill / martinez)
QR Code Link to This Post
Condition
Used - Good
Product Overview
The dbx 160X is a classic professional mono compressor/limiter known for its transparent sound and the legendary OverEasy compression curve. This unit is a rack-mountable processor widely used in studio and live sound environments for its musicality and ease of use.
Specifications and Features
Model: 160X
Compression Type: OverEasy or Hard Knee
Controls: Threshold (-40 to +20 dBm), Compression Ratio (1:1 to infinity), and Output Gain (-20 to +20 dB)
Metering: 19-segment LED display for Input/Output levels and Gain Reduction
Connectivity: 1/4" TRS and terminal strip inputs/outputs
Power Requirement: AC 100V, 50/60Hz, 12 Watts (Japanese Model)
Manufacture/Distribution: Distributed by Electori Co., Ltd. for the Japanese market

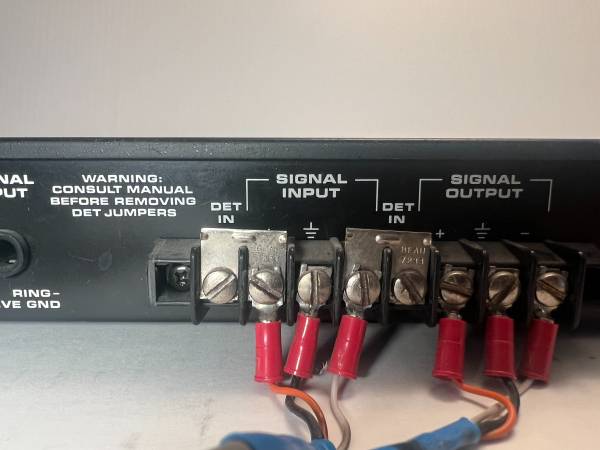

Rear Panel Details
Signal Connections: Balanced/Unbalanced Signal Input and Output
Additional Ports: Detector Input (DET IN) and Strapping for stereo linking with another unit
Calibration: Meter calibration trim pot located on the rear panel
Dimensions
Standard 1U 19-inch rackmount chassis with integrated rack ears.
