Wheel Alignment Systems - Launch Tech USA - $15,613 (Bow NH)
QR Code Link to This Post
show contact info
We stock 2 and 4 post car lifts, storage lifts, alignment lifts, compressors, tire machines, toolboxes and more.
X-613 $15,613
The Launch X-613 is a compact, portable 3D wheel aligner designed for drive-on style lifts without the need of a traditional setup. Its wireless measurement units and clamps deliver fast, precise four-wheel alignment. Quick to deploy, it works in any workshop without installation, wiring, or calibration.
Features
Durable Clamps: Traditional wheel clamps or tire hugger options.
Versatile Design: Covers large range of vehicles
Fast Integration: Seamlessly links to the Throttle V.
Secure Mounting: Strong magnets attach to any lift.
Accurate Reporting: Precision results via QR code, email, or WIFI printing.
Easy Setup: No wiring or permanent installation.
Organized Storage: Wall mounts for units and targets.
Compact footprint: Clamps and magnetic sensors are space-efficient over traditional aligners.
Complete Kit: Includes turntables, wheel chock, steering wheel holder, and brake depressor.
Click links below for more info:
X-613 Wheel Aligner Manual
Specifications
Camber Angle: ±10°
Caster Angle: ±20°
Kingpin Inclination: ±20°
Tire Diameter (3-Point Clamp): 18.5–43.3 in
Toe Angle: ±20°
Track Width: 50.8–74.8 in
WheelBase: 76.4–181.1 in
Wheel Diameter (4-Point Clamp): 10.8–25.2 in

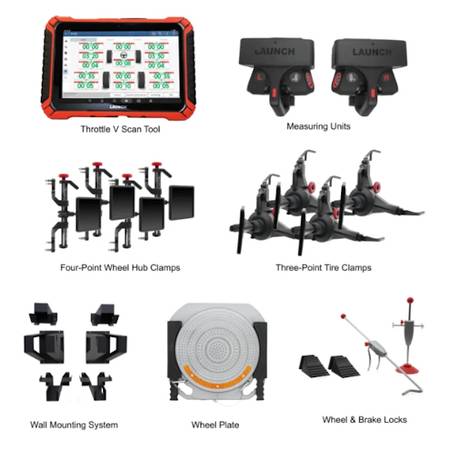

Includes
Measuring Unit (L)
Measure Unit (R)
Power Adapter (US)
Clamp Targets (FL, FR, RL, RR)
Installation Positioning Sticker (4 pcs)
Measuring Unit Bracket (2 pcs)
Soft Cloth
User Manual
Quick Reference Guide
Packing List
Password Envelope
3-Point Tire Clamps (4 pcs)
3-Point Clamp Brackets (2 pcs)
4-Point Wheel Clamps (4 pcs)
4-Point Clamp Brackets (2 pcs)
Wheel Aligner Turntable and Block
Steering Wheel Holder Device
Brake Pedal Depressor Device
X-881 PRO - $26,487
- Compatible with 2 post lifts.
The X-881 Pro delivers fast, precise 3D wheel alignment without fixed installation, making it ideal for any workshop setup. Its advanced cameras and automatic target tracking ensure accurate measurements with minimal effort. With Wi-Fi updates, a large monitor, printer, and VIN scanner, it streamlines alignment reporting and saves time.
Features
True Two Post Aligner: Multi-Bay Aligner compensates for uneven floors up to 30°. Compatible with 2 post lifts.
Essential Accessories: Includes clamps, holders, depressor, and covers.
High Precision Accuracy: Less than one foot run-out compensation.
Comprehensive Measurements: SAI, wheelbase setback, and track data.
Software & Support: Two years of updates and remote support.
Wireless VIN Scanning: Automatic VIN decoder and wireless scanner.
Remote Tech Support: And WiFi enabled
Specifications
Camera: 5MP
Display types: 32″ Color Monitor
Input Power: 110/220VAC 50/60Hz
Interface: USB 3.0
PC Details: Intel based. Windows 10 64-bit with 2GB RAM
Power: AC 110/220 V 50/60 HZ
Operating System: 64-bit Windows 10
Processor: Intel Series
Wheel Base: 4000 mmAccuracy: +/-2 mM
Memory: 2GB
Rim Diameter: 10 - 24"
Customizable Database: 60GB
Monitor: 32" color monitor
Thrust Angle: +/-10% Accuracy: +/-0.01°
Caster: +/-20° Accuracy: +/-0.03°
Retraction Angle: +/-5° Accuracy: +/-0.03°
Wheel Track: 2000 mm Accuracy +/-2MM
Includes
Main Wheel Aligner Cabinet
Camera Beams
32″ Monitor
Monitor Mounting Bracket
Monitor HDMI and Power Cable
Cable Spacers
Wheel Clamps
Tire Clamps
4 Targets
USB Receiver
Steering Wheel Holder Device
Brake Pedal Depressor Device
VIN Decoder Bar Code Scanner
Color Inkjet Printer
Dust Cover
