David Belles Stereo system Combo - $1,900 (emeryville)
QR Code Link to This Post

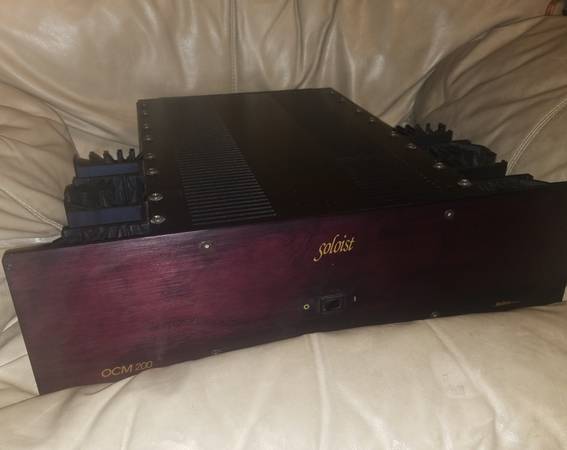

David Belles OCM-200 SOLOIST power amplifier $950.00
David Belles OCM 55 SOLOIST Preamplifier $950.00
Power amplifier has been extremely well taken care of, in excellent to near mint cosmetic condition and perfect working order.
Specifications:
Rated Power (unbalanced stereo): 100 Watts - 8 Ohms / 200 Watts - 4 Ohms
Rated Power (balanced mono): 400 Watts - 8 Ohms
Distortion: THD and IM less than 0.25%
Input Sensitivity: 790mV
Damping Factor: Greater than 150
Input Impedance: 50,000 Ohms
Frequency Response: 3dB Power Bandwidth (0.2 Hz. thru 100KHz)
Hum & Noise: Better than 100 dB
Crosstalk: Better than 80dB
Slew Rate: Over 200 Volts/Microsecond
Peak Current: 50 Amps
Line Power: 120VAC (Bssic Big Fuse) Std (also in 220 & 240VAC)
Dimensions: 19" (Width) x 5.25" (Height) x 17" (Depth) (rack mounting)
Shipping Weight: 39 lbs. (18Kg)

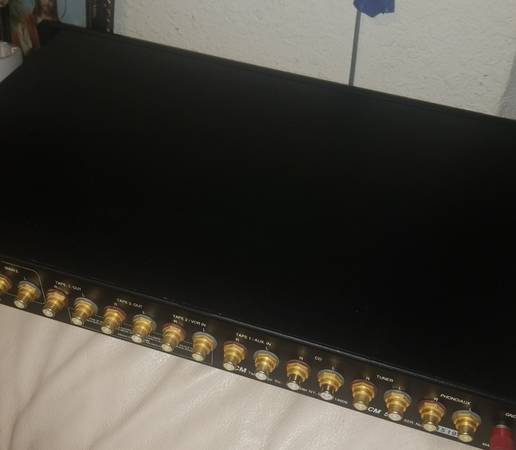

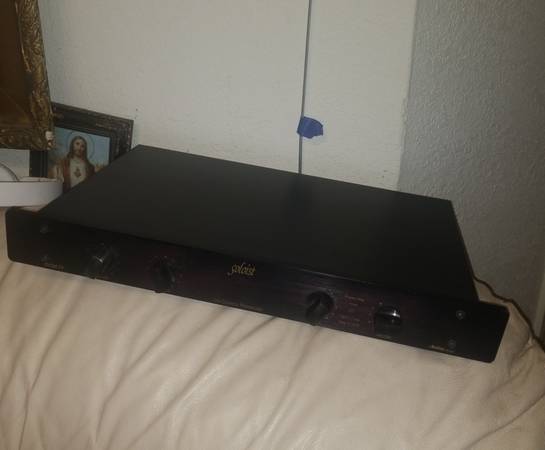

David Belles OCM 55 Preamplifier
MSR $2000
Unit is in excellent condition, well cared for and is working flawlessly.
Discrete stages and bi-furcated relays reduce noise and keep the signal path uncluttered.
Wondercap Capacitors
Gold-plated RCA terminals
Unbelievable sound quality and well taken care of from a non-smoking environment.
David Belles design – David was working for Magnum Dynalab/OCM at the time and now has his own company Power Modules, Inc.
OCM 55 Stereo Preamplifier which has nice airy sound stage, dead quiet background, and very dynamic as you would expect from David Belles products – a true, clean, revealing audiophile grade product with premium components
