NOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT - $210 (Snowflake)

‹ image 1 of 24 ›
NOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 1
NOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 1 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 2 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 3 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 4 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 5 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 6 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 7 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 8 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 9 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 10 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 11 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 12 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 13 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 14 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 15 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 16 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 17 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 18 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 19 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 20 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 21 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 22 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 23 thumbnailNOS DFT DLC 9402 1" 150# SS Flanged Check Valve Inconel Trim 3/4" NPT 24 thumbnail
condition: new
make / manufacturer: DFT Inc.
model name / number: DLC / 9402
size / dimensions: 12.4" x 8.75" x 4.25"

QR Code Link to This Post

This is an Unused NOS Check Valve (New Old Stock) DFT DLC 9402 assembly, a robust Flanged Valve engineered for Branched Flow Control and Backflow Prevention in demanding Custom Piping environments. The valve is a 1 Inch Valve rated at Class 150 and operates as a Spring Check.

Constructed from durable CF8M 316 Stainless Steel (Stainless Steel Valve) with a 316/X750 Inconel Spring (Inconel Spring), this assembly is ideal for Petrochemical and Water Treatment of High Temperature Fluids like Oil, Water, Gas, and Steam.

The unique setup includes a welded SS Tee section with A182 Flange adapters and reduces to a 3/4 NPT Male outlet. This unit offers Non-Slam Backflow Prevention functionality and is ready for heavy Industrial Systems.

Specifications

Manufacturer / Brand: DFT Inc. (Assembled in USA)

Model / Part Number: DLC / 9402

Condition: New - Open box (Unused NOS stock from 11/2015; stored condition)

Valve Type: Spring Check Valve (Non-Slam Backflow Prevention)

Pipe Size / Diameter: 1 inch

Pressure Rating: 150 Class (150#)

WOG Rating (Cold): 275 PSI at 100°F

WSP Rating (Hot): 110 PSI at 700°F

Body Material: CF8M (316 Stainless Steel)

Trim Material: 316/X750 (Inconel X-750 Spring)

Cracking Pressure: 0.36 PSIG

Suitable Media: Oil, Water, Gas, Steam, High-temperature fluids

Applications: Branched Flow Control, Petrochemical, Water Treatment, Custom Piping

Flow Direction: Marked with arrow

Standards: ASME B16.34, ISO 14313

Valve Dimensions: 5.00" length, 4.25" height

Inlet Connection: Flanged (1" Class 150 Raised Face)

Outlet Configuration: Custom T-Assembly with Flange Adapters, Pipe, Tee, and Elbow

Tee Standard: MB A403 (ASTM A403 Stainless Butt Weld)

Elbow Material / Size: SSP 316 JD, Reducing 1" to 3/4" NPT Male

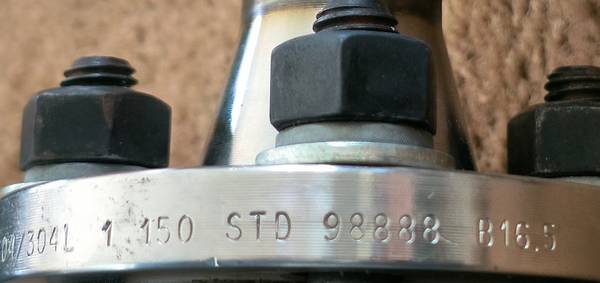

Flange Adapters: Kerkau A182 F304/304L, 1" Class 150, STD, B16.5, Raised Face

Pipe Material: M304/L40WMBG030FA10 (304L Sch 40)

Total Assembly Length: 12 3/8 in

Total Assembly Weight: 14 lbs 2 oz

Material Certification: Austenitic Stainless Steel (A182, A403, A182)

Serial Number: 111243

NPT Outlet: 3/4" Male
