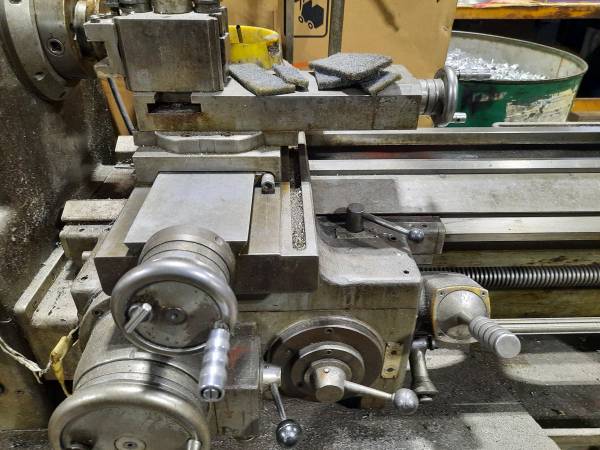

Graziano Sag 12 Engine Lathe - $6,950 (Farmingdale)
QR Code Link to This Post
High Quality Precision Lathe
Equipped with:
Variable on the fly speed shift...up to 2000 RPM
220V 3Phase
Collet attachment
Tool Post
6" Chuck
Tailstock
Condition : Used
Manufacturer : Graziano
Type : Engine Lathe
Location : West Babylon, NY
Specs:
Distance between centers: 800 mm
Center height: 153 mm
Max swing over bed: 306 mm
Max swing over carriage: 166 mm
Max swing in gap: 440 mm
Bar capacity: 41 mm
Bed width: 245 mm
Spindle speed: 2000 rpm
Spindle nose: CAMLOCK 4 mm
Tailstock quill travel: 145 mm
Tailstock taper: CM3
