AMI Model 3010BX Trace Hydrogen Sulfide Analyzer - $3,500 (Tyler)
condition:
new
QR Code Link to This Post

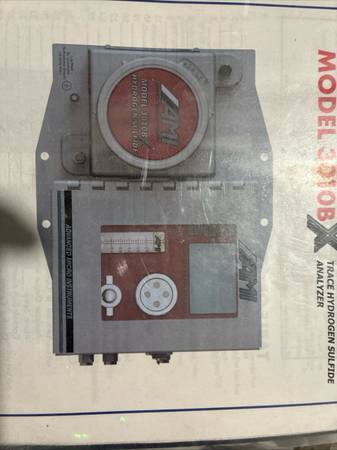

AMI (Advanced Micro Instruments) Model 3010BX Trace Hydrogen Sulfide Analyzer
Permanent-mount process analyzer for natural gas, biogas/RNG, and gas plants.
Still factory-bagged in original carton with foam. Operator manual included.
WHAT IT IS
Continuous trace H2S analyzer for pipeline / plant gas streams.
Class I, Division 1, Groups B, C & D explosion-proof. IP65.
Wall mount or 2" pipe mount.
MEASUREMENT
• Standard ranges: 0–10 / 0–50 / 0–100 / 0–200 ppm H2S
• Optional high-range sensor to 0–2000 ppm (if equipped – see nameplate)
• Electrochemical sensor, front-loading cell
• Patented Eliminator Cell Block (flowmeter, metering valve, 3-way sample/span/off, pressure sensor in one block)
• 90% response <120 sec
I/O
• Isolated 4–20 mA and 1–5 VDC analog outputs
• Modbus RS485
• Dual independent alarm relays
• Internal 0–150 psig inlet pressure sensor
• Data logging (H2S, temp, pressure, supply voltage)
INCLUDED
• Analyzer electronics enclosure (hinged, LCD, flowmeter, cell cap)
• Explosion-proof H2S cell / sample housing (red AMI 3010BX label)
• Operator manual
• Original packing
CONDITION
Unused, new in box, still in factory plastic. Cosmetic scratches on outer carton only. Analyzer itself appears uninstalled.
IMPORTANT
H2S electrochemical sensors have limited shelf life even unused (AMI sensor warranty is 6 months). Buyer should plan on a new sensor + span-gas calibration before putting this in service. Sold as-is, no manufacturer warranty remaining. Local pickup preferred. Shipping at buyer’s expense (freight, ~16 lb analyzer plus packing).
WHO THIS IS FOR
Pipeline measurement techs, midstream operators, gas plants, RNG/biogas skid builders. Not a personal gas detector.
