AMPLIFIER & ELECTRONIC CROSSOVER - $1,050 (TITUSVILLE)
QR Code Link to This Post
MY MSP-1 IS SETUP WITH AN ART 311 ELECTRONIC CROSSOVER. I INSTALLED FIVE HIGH-POWER (300 watt) CHANNELS TO SUPPORT BI-AMPING HIGH END SPEAKERS WITH AN EXTRA CHANNEL FOR A PASSIVE SUBWOOFER. Everything is to fully optimize large floor standing speaker systems. This is extremely powerful and musical.

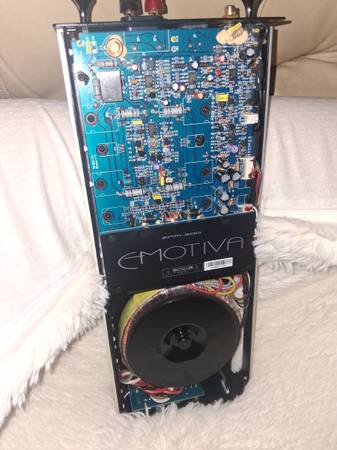

EMOTIVA EPM-300 MONOBLOCK POWER MODULES
Audiophile quality, modular power amplifier.
True card cage design can accommodate up to seven 300 watt (@ 4 ohms) mono block power modules - power modules glide in and out on Nylon rails
Power modules feature independent 350VA, low noise TORID power transformers w/ high speed rectifiers and 48,000uF of storage per channel for a 336,000uF total, across multiple independent channels
High efficiency CLASS H POWER AMPLIFIER DESIGN, minimizes power losses and allows cool operation (BARELY WARM).
Complementary, discrete power amplifier design incorporating high current, high speed, Toshiba power devices
Truly transparent, integrated soft clip circuitry
Balanced XLR and RCA inputs
Channel status indicators for standby, operate, and fault
THD less than .015%, 20Hz-20kHz with 80kHz measurement bandwidth
DC offset, less than 1mv, servo controlled.
Completely Stable into 2 ohm loads
Frequency response 20Hz-20kHz +/- 0.1 dB, or 10Hz-100Khz +/- 3dB
Signal to Noise Ratio - 100dB, un-weighted
Input impedance - 20k ohms.
Crosstalk between ANY channels - greater than 120dB
Fully protected from all fault conditions with ultra-quiet, module mounted, fan assisted cooling for severe duty cycle applications
Soft start circuitry. Silent turn on/off - No audible transients
Signal sensing auto turn on or remote trigger. Soft touch power switch
All aluminum capacitors are premium quality, low ESR, 105°C rated for high reliability and performance.
Doubled sided, plate through, glass epoxy, FR4 PCB's used throughout with 2 ounce poured copper on all power sections and ground planes
Modules are designed for field replacement with the removal of four screws
5RU chassis with floating multi-element, milled aluminum faceplate. Indirect red illumination of power on/off status
Massive, multi element milled aluminum faceplate with "floating" wing detail – indirect panel illumination
Power consumption during standby - 3 watts or 60 watts at idle
IEC power inlet, 120/230 VAC user configurable on modules
Weight - 115 lbs fully loaded
Dimensions: (H x W x D) 7 ¾" x 18 ½" x 19 ¼"
$1999 MSRP Sell for $1000
ART CX 311 AUDIO CROSSOVER
The ART CX311 is a PROFESSIONAL-QUALITY stereo 2-way active audio crossover with a dedicated subwoofer output.
Key Features
Crossover Filters: Fourth-order Linkwitz-Riley (24 dB/octave) for phase-coherent outputs.
Frequency Ranges: Adjustable 2-way crossover from 250 Hz to 6 kHz; dedicated subwoofer control from 50 Hz to 250 Hz.
Low-Cut Filter: Switchable 30 Hz low-cut filter on outputs to eliminate stage rumble.
Connections: Balanced XLR and 1/4" TRS inputs with 1/4" TRS outputs, housed in a 1U rack-mountable steel chassis.
Do you have high end speakers that are capable of bi-amping? If so these individual amplifiers will deliver enhanced bass, soundstage and musicality. Call or write for more information. The crossover allows full power to speakers and options.
SELL FOR $1050 INCLUDING ALL CABLES AND ACCESSORIES.
