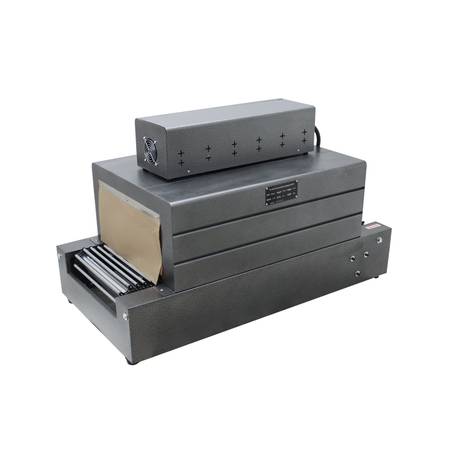

220V Shrink Tunnel Packaging Machine 021565 - $875 (Tampa)
QR Code Link to This Post
*cash preferred*
BS-4020 thermal shrink packaging machine adopts quartz far infrared tube in direct heating or PVC/POF shrinking membrane to achieve optimal contration packaging.The machine is made reliable by electronic step less shift and booster in temperature control,The products packed can be sealed well,prevented from getting damp and protected against knocks.It is suitable for tight wrapping packaging of many-piece articles and tray packaging .which is applied in contraction packaging in.
Product parameter:
Material: Iron spray paint
Max shrink size： 15.75"X7.87" (40X20cm)
Max.feeding weigh： 10Kg (22Lb)
Conveyer speed： 0-32.8/ft (0-10m/min)
Power： 5500W
Voltage: 220V
Machine size: 43.3*22.44*25.2inch/110*57*64cm
Shrinking membrane: PVC
Thickness (mm): 0.02 -0. 06
Heating time(s): 5-10
Temperature (℃）: 110- 130
Shrinking membrane: POF
Thickness (mm): 0.02~0.06
Heating time(s): 5~ 12
Temperature (℃）: 120-180
This machine has no plug and needs to be connected to the air switch for use by the customer (we have a video of the wiring, if you can't wire it, you can contact us for a video reference)
Feature:
Chain conveyor belt (recommended for products with large volume and heavy weight)
The chain conveyor belt adopts a spring steel strip inserted in the middle of the chain. The steel strip has a heat-resistant silicone tube that can isolate heat and not cause deformation of the wrapped film. The shrinkage effect is very good, and the spacing between the chains is 2CM. Circular products can be stuck between the gaps and contract better as the conveyor belt rolls. Products with larger contact surfaces are suitable for this shrinkage machine.
Intelligent control panel
Digital display screen, adjustable temperature, LED light indication, easy to operate.
Core electrical box control box (with fan)
Overload protector
Adopting an independent overload protector, effectively preventing problems such as overheating and over current, safe and durable.
Exhaust and heat dissipation holes
When the machine is working, the heat generated will be dissipated through the heat dissipation holes, resulting in fast heat dissipation and prolonged machine usage.
Product safety precautions:
To ensure safe production, please read the following precautions carefully:
1. Remember the principle of "safety first" and operate this tool correctly;
2. Strictly start this machine according to the appropriate power supply;
3. When the machine is working, it is strictly prohibited to reach into the inside of the shrinking machine to prevent burns. After stopping the machine, it is necessary to wait for it to cool down for a period of time before touching the inside of the machine;
4. It is strictly prohibited to use strong acid and alkaline solutions to clean and wipe this machine;
Item include：220V Shrink Tunnel Packaging Machine*1
Item Number: 021565
