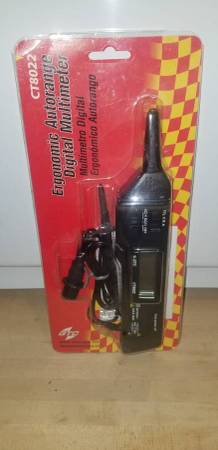

GTC Ergonomic Autorange Digital Multimeter Model CT8022 (NEW) - $49
QR Code Link to This Post
E-Transfers Accepted.
Description
The CT8022 digital meter offers an easy and portable solution for troubleshooting electrical and electronic circuits and systems. With its large and easy to read display, you can use this device with one hand and keep sight of your testing point while reading the display. You can measure outputs in sensors, check grounds, voltage drops, and continuity across cables, and check components like alternators, diodes, fuses, and more.
Applications
Measure output in sensors like Oxygen (O2), Coolant Temperature, Throttle Position (TPS), Manifold Air, Pressure (MAP), Manifold Air Flow (MAF), etc.
Check grounds, Voltage drops and continuity across Connectors, Wires, Cables, Relays Contacts, Lamps, Switches, etc.
Check components like Alternator, Diodes, Relays Coils, Condensers, Ignition Coils, Spark Plug Wires, Magnetic Pick-ups, Motors, Switches, Fuses, etc.
An essential tool for all around troubleshooting of electrical and electronic circuit and systems
Specifications
DC Voltage: ±0.8% + 1dgts., 10MOhm input impedance, 600 V ac/dc Overload protection
AC Voltage: ±1.2% + 3 dgts., 10MOhm input impedance, 40 to 400 Hz, 600 V ac/dc Overload protection
DC Current: ± 1.2 % + 3 dgts., Internal 400mA/250V fuse protection
AC Current: ± 1.2 % + 5 dgts., Internal 400mA/250V fuse protection
Resistance: ±1.0% + 3 dgts., 250 V ac/dc overload protection
Logic Probe: >2 Volt displays ‘Hi’, ‹0.8 Volt displays ‘Lo’. Input protected up to 250 Volt for > 10 Sec.
Diode test: 1.0 ± 0.6 mA test current, 3.2 V max. test voltage
