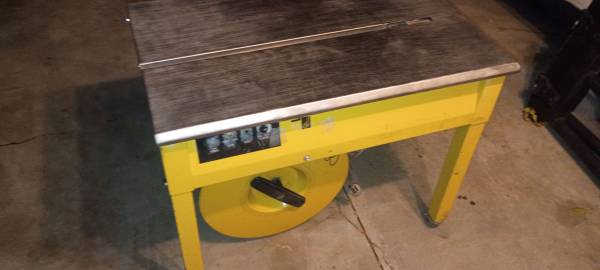

Commercial Semi-Automatic Polypropylene Strap Binding Machine - $400 (Sioux Falls)
condition:
good
make / manufacturer:
Dynaric
model name / number:
SM-65
size / dimensions:
W35.6 in
• D22.4 in • H30.5 in
QR Code Link to This Post
Machine Overview and Features
• Machine Type: Semi-automatic strapping machine designed for bundling, carton closing, and general package reinforcement.
• Strap Material: Heat-sealable polypropylene (PP) strapping.
• Compatible Strap Widths: Accommodates multiple narrow-to-medium polypropylene strap widths.
• Operation: Operator feeds the strap around the package and the machine automatically tensions, heat-seals, and cuts the strap.
• Tension Force Range: 2 kgf to 40 kgf (4.4 lbs to 88 lbs of force).
• Tension Adjustment: Controlled electronically via a dial micro-processor control panel on the exterior body.
• Sealing Method: Thermal "hot-knife" heat seal (the ends are melted and fused together) followed by a short weld-cool phase before bundle release
Machine Dimensions & Structural Specs
• Machine Weight: Approximately 45 kg (100 lbs).
• Table Height: 775 mm (approx. 30.5 inches), standard ergonomic desk height for box sliding.
• Minimum Package Size: Approximately 100 mm Wide x 30 mm High (3-7/8" W x 1-1/8" H). Maximum package size is limited only by what the operator can manually lift and feed.
Electrical & Controls
• Power Requirements: 100-120V or 200-240V Single Phase, 50/60Hz.
• Operator Interface: Features a main power toggle switch, manual feed length adjustment knob, manual feed push-button, and an error reset button
Missing Smoke Fan Tube
