Sh-4d (Synth + Drum machine) - $450
QR Code Link to This Post
Weighing 3.92 lbs and running on USB or AA batteries.
Sound Engine & Polyphony
Polyphony: Up to 60 voices (varies by sound generator load).Parts: 5 total (4 Tone parts and 1 Rhythm part).
Oscillator Models: SH-4d, SH-3D, SYNC, SH-101, JUNO-106, Cross FM, RING, WAVETABLE, CHORD, DRAWING, PCM, STEP, HARMONIC, and RHYTHM.
User Memory: 256 sound patches and 128 patterns.Sequencer & PerformanceSequencer: 5 parts with up to 64 steps, sub-steps, flam, and probability functions.
Arpeggiator: 5 types.Controllers: Built-in switch keyboard, step buttons, 32 knobs, 4 sliders, and D-Motion (motion sensor).

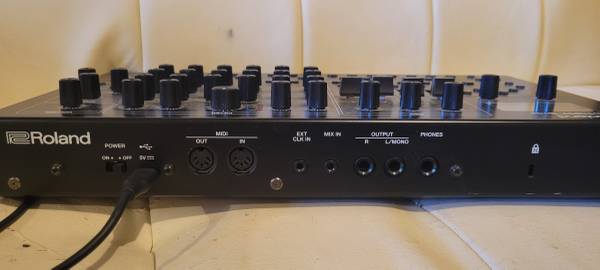

Outputs: 2x 1/4" main outputs (L/Mono, R) and a 1/4" stereo headphone jack.
Audio Inputs: 3.5mm stereo mix input and 3.5mm mono external clock input.
MIDI & USB: 5-pin MIDI In/Out and USB Type-C port (supporting audio and MIDI).Power: USB bus power (500mA) or 4x AA batteries (Alkaline or Ni-MH).
Battery Life: Approx. 4 hours (Alkaline) or 5 hours (Ni-MH).
Physical DimensionsSize: 14.17" x 7.67" x 2.59" (360 x 195 x 66 mm).Weight: 3.92 lbs (1.78 kg, excluding batteries).
