Technics SA-EX110 AV Control Stereo Receiver - No remote - $60 (Upper West Side)
W. 83rd St. near Bet. CPW & Columbus Ave.
condition:
excellent
make / manufacturer:
Technics
model name / number:
SA- EX110
size / dimensions:
16.8" x 10.75" x 5.75"
QR Code Link to This Post
AI Overview
The Technics SA-EX110 is a 2-channel AV control stereo receiver released around 1996, featuring 100 watts per channel into an 8Ω load and a high-efficiency Class H+ amplifier design.
You can check out the full operating guide via the Technics SA-EX110 Operating Instructions
https://archive.org/details/manuallib-id-2655716
.
Power and Audio Performance:
Power Output: 100W per channel into 8Ω (stereo)
Frequency Response: 10Hz to 40kHz
Total Harmonic Distortion (THD): 0.8%
Damping Factor: 30
Signal-to-Noise Ratio (SNR): 78dB (MM Phono), 83dB (Line)
Input Sensitivity: 3mV (MM Phono), 200mV (Line)
Amplifier Architecture: Class H+ high-efficiency circuitry
Connectivity and Inputs

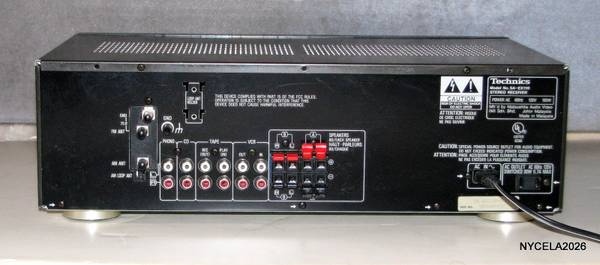

Audio Inputs: Phono (Moving Magnet / MM), CD, Tape 1, Tape 2 / Monitor, and VCR
Radio Tuner: Quartz-synthesized digital AM / FM tuner with 30 station memory presets
FM Tuning Range: 87.9–107.0 MHz
Speaker Outputs: Speaker A and B selection with raw cable spring-clip / stereo L/R connections
Additional Outputs: Front-panel headphone jack and a switched AC convenience outlet
Tone Controls: Bass, treble, and balance knobs, plus a mute function
Physical Dimensions and Build:
Dimensions (W x D x H): approx. 16.8" x 10.75" x 5.75"
Weight: approx. 13.41 pounds
Power Requirement: 120V AC, 60Hz, 155W
Made in Malaysia
