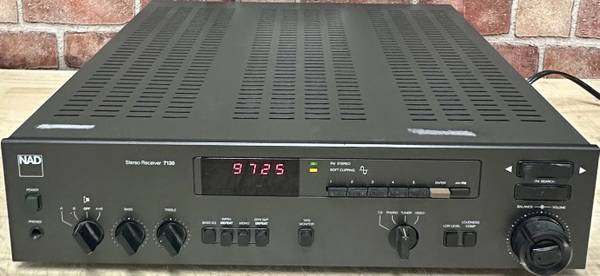

NAD 7130 , Vintage Integrated Receiver Amplifier / Tuner AM / FM - $260 (Raleigh)
condition:
excellent
QR Code Link to This Post
FM Tuner Section
Usable Sensitivity: Mono, 10.3 dBf.
50-dBQuieting Sensitivity: Mono, 14,2 dBf; stereo, 34.2 dBf.
S/N: Mono, 82 dB; stereo, 75 dB.
THD: Mono, 0.09% at 1 kHz, 0.2% at 100 Hz and 6 kHz; stereo, 0.09% at 1 kHz. 0.3% at 100 Hz and 6 kHz.
Frequency Response: 30 Hz to 15 kHz, + 0 5 dB.
Capture Ratio: Less than 1.5 dB.
Image Rejection: 75 dB.
Selectivity: 70 dB. I.F.
Rejection: 75 dB. SCA Rejection: 70 dB.
Subcarrier Suppression: 60 dB.
AM Rejection: Greater than 62 dB.
Stereo Separation: 50 dB at 1 kHz, 40 dB at 100 Hz and 10 kHz.
AM Tuner Section
Usable Sensitivity: 300 µV/meter.
Selectivity: 35 dB.
Image Rejection: 50 dB. I.F. Rejection: 50 dB.
Amplifier Section
Power Output: 30 watts per channel, continuous, into 8-ohm loads, 20 Hz to 20 kHz; clipping power at 8 ohms, 1 kHz, 45 watts per channel; clipping power at 4 ohms, 1 kHz, 48 watts per channel.
Dimensions: 16.5 in. W x 4.25 in. H x 15 in. D (42 cm x 10.8 cm x 38 cm).
Weight: 17 lbs., 9 oz. (8 kg).
