Lindgren solid copper sheet (not screen) Faraday cage panels needs wor - $3,995 (Mountainair)

Lindgren solid copper sheet (not screen) Faraday cage panels needs wor 1

Lindgren solid copper sheet (not screen) Faraday cage panels needs wor 1 thumbnail

condition: salvage

make / manufacturer: Lindgren

model name / number: 22-3/5-0

size / dimensions: 10x14x8'

more ads by this seller

QR Code Link to This Post

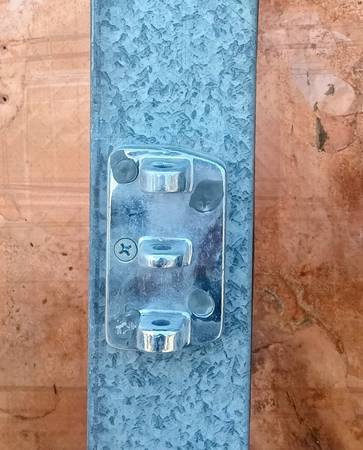

This is a solid sheet Faraday cage which should work for higher frequencies than a screen room. The inside sheets are copper and the out side are galvanized sheet metal. There are a number of damaged spots readily repaired with patches of copper sheet and solder. There is a vent panel in the top of one of the roof panels. There is a heavy door and door frame. There are at least 20 BNC feed throughs. Panels are somewhat dirty and need cleaning. Floor panels have wood slats that lay on the floor, plywood panel goes on the copper side. (WE DON'T HAVE ANY OF THE PLYWOOD FLOORING)
1 DOOR 7' X 36" X 2" THICK.
13X 8' LONG X 40" WIDE X 2" THICK WALL PANELS
4X 10' LONG X 40" WIDE X 2" THICK CEILING PANELS
4X 10' LONG X 40" WIDE X 2" THICK FLOOR PANELS
22 PANELS IN ALL COUNTING DOOR AND DOOR FRAME
NO HARDWARE, NO BOLTS, NO NUTS
