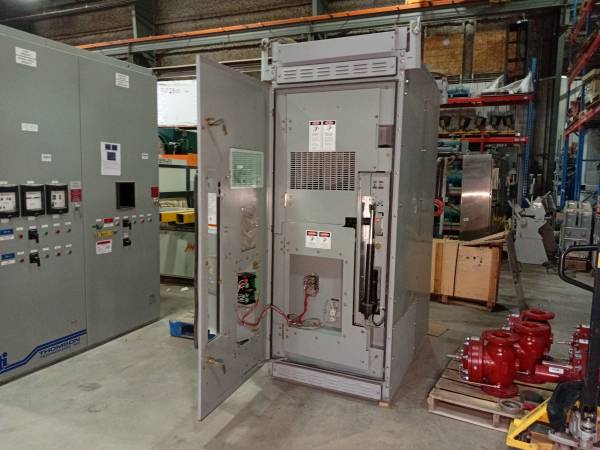

5kV MVS2 MV Load Interrupter Switch, 600A - $25,000 (Leduc)
6226 41 St
condition:
good
make / manufacturer:
EATON CUTLER-HAMMER
model name / number:
MVS2
size / dimensions:
70"x55"x115"
QR Code Link to This Post
Serial Number: 1D78052G02
Amps: 600 amps
Voltage: 5000 volts
Phase: 3-phase
Type: MVS2
Style: 1D78052G02
Enclosure: NEMA 3R
Max. Voltage: 5kV
Impulse Withstand: 60kV
Current (Continuous & Interrupting): 600A
Current (Fault Close & Momentary): 61kA
Current (Short-Time - 2 Sec.): 38kA
Control Voltage: 120V
Phase: 3-Ph
Frequency: 60hz
