DESKTOP COMPUTER - $40 (Lake Mary)
condition:
good
size / dimensions:
16.5x8.25x 16.5
QR Code Link to This Post
GIGABYTE GA-MA785GM-US2H Rev. 3.3
AMD ATHLON II x2 250 3.00 GHZ
8 GB DDR2 RAM 667 MHZ
WESTERN DIGITAL BLUE 320GB 16MB CACHE SATA HARD DRIVE WD3200AAKX
ANTEC SLK2600AMB SOLUTION SERIES CASE
CORSAIR CMPSU-400CX 400W POWER SUPPLY
MSI N8400GS-D512H GEFORCE 8400 GS GRAPHICS CARD
STARTECH.COM ST1000BT32 1 PORT PCI 10/100/1000 32 BIT ETHERNET NETWORK CARD
SONY DRUV204A INI 20X PATA DVDRW DRIVE
WINDOWS 10 SOFTWARE
**MANUALS FOR ABOVE INCLUDED**
***HD HAS BEEN WIPED CLEAN WINDOWS 10 HAS BEEN RESET AND DEVICE HAS BEEN REMOVED FROM MY MICROSOFT ACCOUNT***
ALL COMPONENTS IN GOOD WORKING CONDITION!

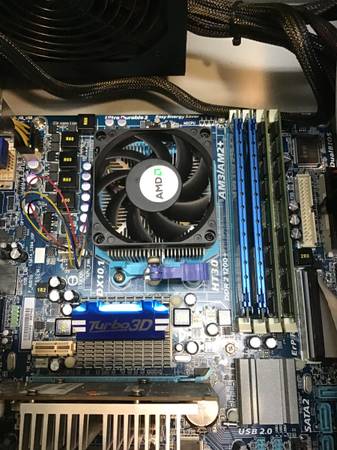

GIGABYTE GA-MA785GM-US2H Rev. 3.3
The Gigabyte GA-MA785GM-US2H (Rev. 3.3) is a Micro-ATX motherboard based on the AMD 785G and SB710 chipsets.
Core Specifications
• CPU Support: Socket AM3, AM2+, and AM2 supporting AMD Phenom™ II X6/X4/X3/X2, Athlon™ II X4/X3/X2, and Sempron™ processors (HyperTransport 3.0 link up to 5200 MT/s).
• Chipset: AMD 785G (North Bridge) and AMD SB710 (South Bridge).
• Memory (RAM): 4 x DDR2 DIMM slots supporting up to 16 GB of dual-channel memory (speeds supported up to 1200+ MHz via overclocking and native 1066/800/667 MHz depending on the CPU).
• Onboard Graphics: Integrated ATI Radeon HD 4200 engine (DirectX 10.1) with Hybrid CrossFireX support.
• Expansion Slots:
o 1 x PCI Express 2.0 x16 slot (supports ATI CrossFireX)
o 1 x PCI Express 2.0 x1 slot
o 2 x legacy PCI slots
• Storage & Internal Connectors:
o 5 x SATA 3Gb/s ports (supporting RAID 0, 1, 0+1, and JBOD)
o 1 x IDE connector
o 1 x Floppy disk drive connector
• Audio & Networking:
o Realtek ALC889A 7.1-channel High Definition Audio codec with Blu-ray playback support
o Realtek 8111C Gigabit LAN controller
• Rear I/O Panel Ports:
o 1 x D-Sub (VGA) port
o 1 x DVI-D port
o 1 x HDMI port
o 1 x PS/2 Keyboard/Mouse combo port
o 6 x USB 2.0/1.1 ports (plus headers for up to 6 additional internal ports)
o 1 x eSATA II port
o 2 x IEEE 1394a (FireWire) ports
o 1 x RJ-45 LAN port
o Audio jacks (Line In, Line Out, Mic In, etc.)
o
• Form Factor: Micro-ATX (24.3 cm x 24.3 cm) featuring GIGABYTE Ultra Durable 3 Classic technology with a 2oz copper PCB design and DualBIOS hardware protection.
AMD ATHLON II x2 250 3.00 GHZ
Architecture & Core Details
• Core Name: Regor
• Microarchitecture: AMD K10
• Manufacturing Process: 45 nm DSL SOI (Silicon-on-Insulator)
• Transistor Count: ~234 million
• Die Size: 117.5 mm²
• Multiplier: 15x (Locked)
Cache Hierarchy
• Level 1 (L1) Cache: 256 KB total
o 2 x 64 KB 2-way set associative instruction caches
o 2 x 64 KB 2-way set associative data caches
• Level 2 (L2) Cache: 2 MB total (1 MB dedicated per core, 16-way set associative)
Memory & Interface Support
• Integrated Memory Controller: 1 controller supporting up to 2 channels (Dual-Channel)
• Supported Memory Types: DDR2 and DDR3 (Up to DDR3-1066 officially)
• Bus Type:
HyperTransport 3.0 Technology
• System Bus Speed: 2000 MHz (4000 MT/s) 16-bit link
• Expansion Slot Support: PCI-Express Gen 2
Electrical & Thermal Specs
• Core Voltage Range (Vcore): 0.85V – 1.40V
• Maximum Operating Temperature: 55°C – 74°C
• Thermal Design Power (TDP): 65 Watts [1]
Instruction Sets & Technologies
• Extensions: MMX, Extensions to MMX, 3DNow!, Extensions to 3DNow!, SSE, SSE2, SSE3, SSE4a, AMD64 (64-bit support)
• Virtualization: AMD-V (Hardware Virtualization support)
• Security: Enhanced Virus Protection (EVP) / Execute Disable Bit
• Power Management: Cool'n'Quiet 3.0, Dual Dynamic Power Management, Core C1 and C1E states
WESTERN DIGITAL BLUE 320GB 16MB CACHE SATA HARD DRIVE WD3200AAKX
The Western Digital Blue 320GB desktop hard drive (model WD3200AAKX) is a reliable 3.5-inch internal mechanical HDD engineered for primary storage in desktop PCs and workstation environments.
Core Specifications
• Capacity: 320 GB
• Rotational Speed: 7,200 RPM
• Cache Buffer: 16 MB
• Interface: SATA 6 Gb/s (SATA III) (Backward compatible with SATA II 3 Gb/s and SATA I 1.5 Gb/s ports)
• Form Factor: 3.5-inch Large Form Factor (LFF) for standard desktop tower drive bays
• Sector Format: Advanced Format 512e (logical 512B)
• Sustained Data Transfer Rate: Up to 126 MB/s
Key Hardware Features
• NoTouch Ramp Load Technology: The recording head is designed to never touch the disk media. This prevents head wear and protects your data during spin-up, spin-down, or transit.
• IntelliSeek: This calculates optimal seek speeds to reduce tracking power consumption, operational noise, and mechanical vibration.
• ShockGuard: Provides real-time protection to shield the drive mechanisms against sudden drops, bumps, or shocks during everyday operation.

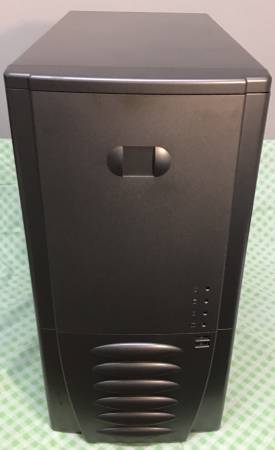

ANTEC SLK2600AMB SOLUTION SERIES CASE
The Antec Solution SLK2600AMB is a metallic bronze ATX mid-tower computer case featuring a steel build.
Specifications & Features
• Dimensions & Weight: Measures 16.5 inches (height) x 8.25 inches (width) x 16.5 inches (depth) and weighs approximately 16 lbs.
• Drive Bays: Includes four external 5.25" bays, two external 3.5" bays, and two internal 3.5" hard drive bays.
• Cooling: Supports dual 80mm fans. [1]
• Motherboard Support: Fits standard ATX form factor boards
CORSAIR CMPSU-400CX 400W POWER SUPPLY
The Corsair Builder Series CX400 (Model: CMPSU-400CX) is a legacy, non-modular 400W ATX power supply. It was widely regarded as a highly reliable budget unit for its time, featuring a strong single +12V rail and solid efficiency.
Technical Specifications
• Form Factor: Standard ATX (150mm x 86mm x 140mm)
• Efficiency: 80 PLUS Standard Certified (typically staying above 80% efficiency)
• Power Output: 400W continuous at 40°C, with a dedicated single +12V rail delivering up to 30A (360W)
• Cooling: Thermally-controlled 120mm double ball-bearing fan
• Input Voltage: Universal AC 90–264V (automatic switching, no manual red switch)
• Cabling: Fully non-modular (all cables permanently attached) and fully sleeved
Hard-Wired Connectors
• 1x 20+4 Pin Main ATX Connector
• 1x 4+4 Pin ATX12V/EPS12V CPU Connector
• 1x 6-Pin PCI-Express Graphics Connector
• 6x SATA Connectors
• 6x 4-Pin Molex Peripheral Connectors
• 2x Floppy Drive Connectors
MSI N8400GS-D512H GEFORCE 8400 GS GRAPHICS CARD
Features a passive, fanless cooling design, making it completely silent and highly suitable for basic home theater PCs, vintage builds, or office workstations requiring multi-monitor support without excessive power draw.
Technical Specifications
• Graphics Engine: NVIDIA GeForce 8400 GS
• Bus Standard: PCI Express x16 (PCIe 2.0 compatible)
• Video Memory: 512 MB DDR2
• Memory Interface: 64-bit
• Core Clock Speed: 567 MHz
• Memory Clock Speed: 800 MHz
• Memory Bandwidth: 6.4 GB/sec
• Maximum Resolution: 2560 x 1600
• API Support: DirectX 10.0 and OpenGL 2.0
• Thermal Design Power (TDP): 20 Watts
• Video Output Connectivity
• The card features standard integrated display connections:
• 1 x DVI-I (Supports Dual-Link DVI)
• 1 x VGA (D-Sub)
• HDMI Support: Optional (via an external DVI-to-HDMI adapter; does not carry a native audio signal).
STARTECH.COM ST1000BT32 1 PORT PCI 10/100/1000 32 BIT ETHERNET NETWORK CARD
Technical Specifications
Bus Interface: Traditional 32-bit PCI (PCI Version 2.2 compliant). It features a universal keying layout supporting both standard 5V and lower-voltage 3.3V PCI or older PCI-X slots.
• Onboard Chipset: Realtek RTL8110SC.
• Port Configuration: 1 x RJ45 Female port supporting auto-negotiation.
• Bandwidth Capacity: Supports data transfer rates up to 1000 Mbps (Gigabit) in each direction, enabling up to a 2000 Mbps full-duplex maximum throughput.
• Network Protocols: Fully compliant with IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), and IEEE 802.3ab (1000Base-T).
• Physical Dimension/Form Factor: Standard plug-in expansion board measuring 4.8" x 0.8" x 2.5". Ships with a full-profile bracket installed and includes an interchangeable low-profile / small form factor (SFF) bracket inside the package.
Platform & Driver Compatibility
The card is known for excellent driver support across broad computing lifecycles:
• Windows Ecosystem: Backwards compatible to native Windows 98SE/ME/2000/XP/7/8/10, and fully operational up to Windows 11.
• Windows Server:
Certified for deployments spanning Server 2003 up through Server 2019.
• Open Source Environments: Native mainline driver compatibility with Linux kernel 2.6.x and higher.
SONY DRUV204A INI 20X PATA DVDRW DRIVE
The Sony DRU-V204A is an internal desktop DVD/CD rewritable optical drive. It features a maximum 20X DVD burning speed and utilizes a standard PATA (Parallel ATA / IDE / ATAPI) interface for data transmission.
Technical Specifications
Performance and physical parameters compiled from contemporary product listings:
• Form Factor: 5.25-inch internal desktop drive bay configuration.
• Interface Standard: PATA / IDE / EIDE (Connects using standard 40-pin IDE data cables and 4-pin Molex power connectors).
• Maximum Write Speeds:
o DVD±R: 20X
o DVD±R DL (Double Layer): Up to 12X
o DVD-RAM: 12X
o CD-R: 48X
• Writable & Readable Media Formats: Full compatibility with DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-RAM, CD-R, and CD-RW discs. [1, 2]
• Buffer Memory:2 MB (Equipped with under-run protection technologies to prevent failed media burns).
