Paint Spray Booths - Binks Commercial Semi-Truck / Industrial (Indianapolis)
S Minnesota St near Holt Rd
QR Code Link to This Post
Price: Make an offer

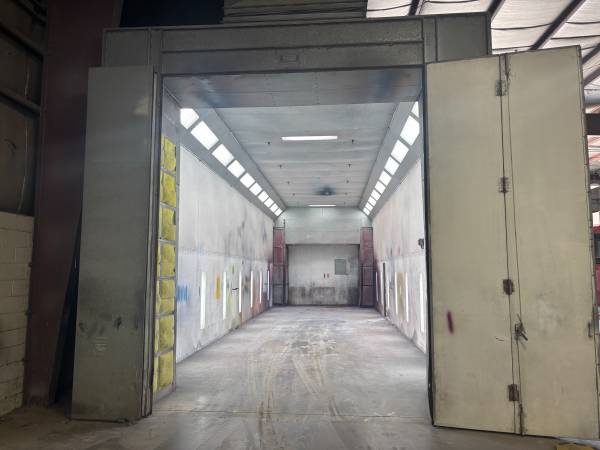

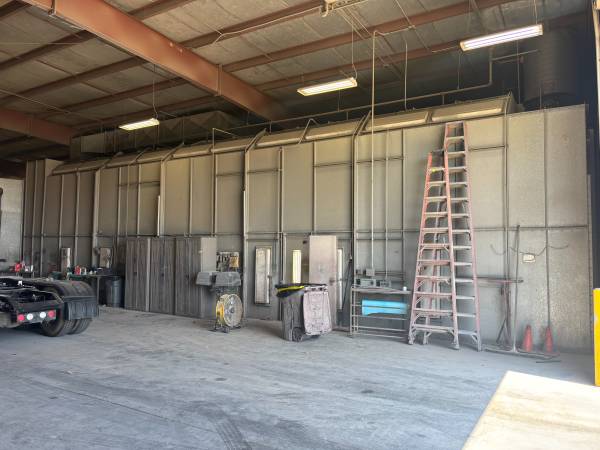

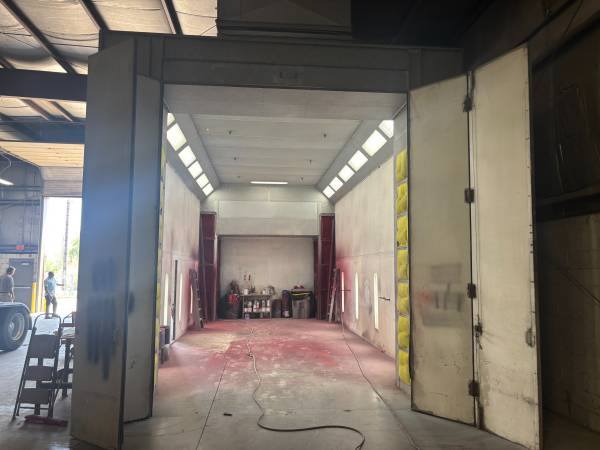

Two heavy-duty commercial spray paint booths manufactured by Binks Manufacturing Company, specifically designed for painting semi-trucks, trailers, buses, and large industrial equipment. Both units are heated, equipped with dehumidification capabilities, and feature complete air handling systems with 25,000 CFM air supply units, temperature controls, heavy-duty exhaust systems, and Class I, Div II explosion-proof lighting. Original Binks engineering blueprints and detailed documentation are included.
Can be sold together or individually. Buyer responsible for teardown, loading, and transport.
Booth #1: Binks Model TA-534-T-LO
- Manufacturer: Binks Manufacturing Company
- Model: TA-534-T-LO (Andreae Filter, Solid Back Truck Booth with Air Supply Plenum)
- Working/Internal Dimensions: 14' 0" Wide x 15' 0" High x 34' 0" Working Depth
- Overall/External Dimensions: 14' 4" Outer Width x 15' 2" Structural Height x 41' 0" Total Length (including plenums)
- Air Supply Unit: 25,000 CFM Air Supply Unit with 15 HP motor (230V, 60Hz, 3-Phase)
- Exhaust Fan & Motor: 42" Diameter Exhaust Fan with 7.5 HP motor (230/460V, 60Hz, 3-Phase)
- Ducting & Stack: 42" Spiral exhaust stack (plain section + section with access door), 42" flat roof flange, and 42" weather hood with automatic damper.
- Lighting: (21) Class I, Division II Explosion-Proof Fluorescent Fixtures
- Observation Windows: (22) Sealed observation windows with frames
- Included Controls & Accessories: FM Gas Manifold, motorized outlet damper, remote control station with temperature control, inlet filter bank with permanent filters, inlet hood with birdscreen, and draft gauge.
---
Booth #2: Binks Model TA-544-T-LO
- Manufacturer: Binks Manufacturing Company
- Model: TA-544-T-LO (Andreae Filter, Solid Back Truck Booth with Air Supply Plenum)
- Working/Internal Dimensions: 14' 0" Wide x 15' 0" High x 44' 0" Working Depth
- Overall/External Dimensions: 14' 4" Outer Width x 15' 2" Structural Height x 65' 0" Total Length (including plenums)
- Air Supply Unit: 25,000 CFM Air Supply Unit with 15 HP motor (230V, 60Hz, 3-Phase)
- Exhaust Fan & Motor: 42" Diameter Exhaust Fan with 7.5 HP motor (230/460V, 60Hz, 3-Phase)
- Ducting & Stack: 42" Spiral exhaust stack (plain section + section with access door), 42" flat roof flange, and 42" weather hood with automatic damper.
- Lighting: (26) Class I, Division II Explosion-Proof Fluorescent Fixtures
- Observation Windows: (50) Sealed observation windows with frames
- Included Controls & Accessories: FM Gas Manifold, motorized outlet damper, remote control station with temperature control, inlet filter bank with permanent filters, inlet hood with birdscreen, and draft gauge.
---
Condition & Notes:
- Units are currently assembled and installed; local inspection can be arranged prior to purchase.
- Buyer Removal: Buyer is solely responsible for dismantling, removal, rigging, loading, and transportation.
- Complete manufacturer specifications, invoices, and original Binks engineering blueprints are included with the sale.
Please call or email to schedule a time to view the booths. No price listed. Please make an offer.
