FallTech 83909TP5 DuraTech 9 ft Twin-Leg Leading Edge Self-Retracting - $190 (Glenview)
E Lake Ave near Waukegan Rd
QR Code Link to This Post
Condition: Used. Shows significant cosmetic wear, dirt, dust, scratches, scuffs, and discoloration from previous use and storage. The retractable lifeline housings, galvanized steel cables, aluminum rebar hooks, connecting hardware, and energy absorber assembly are pictured. The padded energy absorber cover shows visible wear and fraying along portions of its fabric edges. The cables, retraction mechanisms, locking functions, shock absorber, and fall-arrest performance have not been tested or certified. Previous fall-arrest history is unknown. Professional inspection and manufacturer-required recertification or serviceability determination are necessary before any safety-related use. Two units available; listed price is for ONE (1) complete twin-leg assembly, not both units.
## Detailed Description
The FallTech DuraTech 83909TP5 is a professional twin-leg, leading-edge self-retracting lifeline (SRL) designed for personal fall protection in construction, industrial maintenance, structural steel work, and elevated work environments.

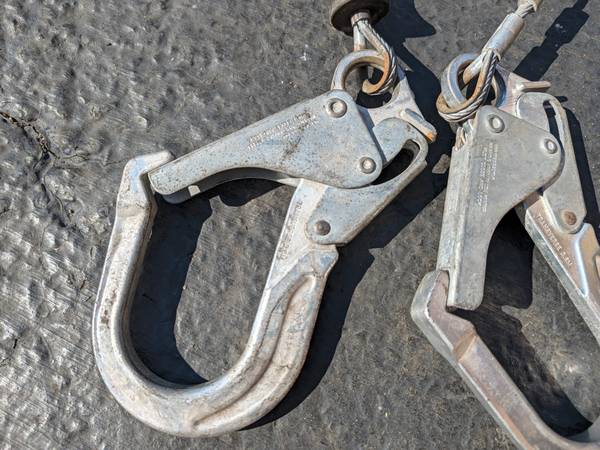

The assembly incorporates two independent self-retracting galvanized steel cable lifelines, large-opening rebar hooks, a central harness attachment connector, and an integrated energy absorber.
Its twin-leg configuration is intended to allow workers to maintain continuous attachment while transitioning between approved anchorage points, following the manufacturer's transfer procedures.
Unlike conventional fixed-length shock-absorbing lanyards, the DuraTech SRL uses spring-loaded cable reels that automatically extend and retract as the user moves. Internal braking mechanisms are designed to engage during a fall event, limiting cable payout and helping reduce arrest distance.
The 83909TP5 is part of FallTech's 9-foot DuraTech Leading Edge Personal SRL family, originally designed for applications where fall hazards may involve horizontal surfaces, structural edges, and anchorage locations below the worker's dorsal attachment point.
The manufacturer's specifications identify the equipment as an ANSI Z359.14-2014 Class B self-retracting device for applicable overhead applications, with additional manufacturer-defined leading-edge performance requirements.
## Features
- Twin-leg configuration: Two retractable lifelines permit alternating attachment to approved anchorages.
- 9-foot nominal working length: Provides a practical range of movement during elevated work.
- Leading-edge design: Originally engineered for certain applications involving edge-contact hazards, subject to manufacturer limitations.
- Self-retracting steel cable: Automatically adjusts available cable length as the worker moves.
- Large-opening rebar hooks: Suitable for connection to compatible, approved structural anchorage members.
- Integrated energy absorber: Helps manage fall-arrest forces during a fall event.
- Compact retractable housings: Impact-resistant polymer construction protects internal cable reels and braking components.
- Harness-mounted configuration: Designed for attachment to a compatible full-body fall-arrest harness.
- Galvanized steel wire rope: Provides abrasion-resistant cable construction.
- ANSI Class B identification: Original labeling references ANSI Z359.14-2014 and Class B SRL-LE classification.
## Specifications
| Specification | Details |
| ------------------------------ | ----------------------------------------- |
| Manufacturer | FallTech |
| Product Family | DuraTech Leading Edge |
| Model / Style | 83909TP5 |
| Product Type | Twin-Leg Self-Retracting Lifeline |
| Abbreviation | SRL / SRL-LE |
| Nominal Lifeline Length | 9 ft per leg (manufacturer specification) |
| Lifeline Material | Galvanized Steel Wire Rope |
| Cable Diameter | 3/16 in. |
| Number of Retracting Lifelines | 2 |
| Hook Type | Large-Opening Rebar Hooks |
| Hook Material | Aluminum Alloy |
| Housing | Impact-Resistant Nylon Polymer |
| Energy Absorber | Polyester Tear-Away, Padded Cover |
| Harness Connector | Aluminum Alloy Dorsal Connector |
| User Weight Capacity | 130–310 lb (59–141 kg) |
| ANSI Classification | Class B SRL-LE under 2014 standard |
| Referenced Standard | ANSI Z359.14-2014 |
| Referenced OSHA Standard | OSHA 1926.502 |
| Maximum Free Fall | 5 ft (label stated) |
| Minimum Setback Distance | 0 ft (label stated) |
| Minimum Edge Clearance | 17 in. (label stated) |
| Arrest Distance | 47 in. (label stated) |
| Average Arrest Force | 900 lb (label stated) |
| Approximate Assembly Weight | 9 lb |
| Date of Manufacture | October 2020 (pictured unit) |
| Serial Number | 5596490 (pictured unit) |
| Quantity for Sale | 2 assemblies available |
| Quantity Included Per Purchase | 1 twin-leg SRL assembly |
The nominal 9-foot working length is based on the verified manufacturer model specification; the 5-foot label marking indicates maximum free fall, not lifeline working length. Performance figures are configuration-dependent and must not be used without the applicable FallTech instructions and fall-clearance calculations.
## Fall-Arrest Performance
The manufacturer's documentation provides the following nominal performance values for the twin-leg 83909TP series.
| Performance Attribute | Published Value |
| ------------------------------------------ | --------------- |
| SRL Classification | ANSI Class B |
| Typical Overhead Arrest Distance | 46.5 in. |
| Typical Overhead Average Arrest Force | 924 lb |
| Typical Overhead Maximum Arrest Force | 1,539 lb |
| ANSI Maximum Arrest Distance | 54 in. |
| ANSI Maximum Arrest Force | 1,800 lb |
| Leading-Edge Arrest Distance, 5 ft Setback | 92.8 in. |
| Leading-Edge Arrest Distance, 0 ft Setback | 95.1 in. |
These are published performance figures, not measured results for the used assembly being sold. Fall-clearance requirements may be significantly greater for leading-edge configurations.
## Applications
The FallTech 83909TP5 is designed for appropriately engineered personal fall-arrest systems used in:
- Commercial construction: Elevated building construction and structural installations.
- Structural steel erection: Work involving beams, framing members, and approved anchorages.
- Industrial maintenance: Elevated machinery, equipment platforms, and facility maintenance.
- Roofing operations: Certain leading-edge applications under properly designed fall-protection procedures.
- Bridge construction: Work on elevated structural components.
- Utility and infrastructure maintenance: Elevated service work involving approved fall-arrest anchorages.
- Industrial plant shutdowns: Maintenance activities requiring worker mobility and controlled fall protection.
Because these units are used and have not been inspected, their intended applications describe the original product design, not approval of these particular assemblies for service.
## Compatible Systems and Assemblies
The FallTech 83909TP5 was designed to function as one component of a complete personal fall-arrest system.
Related system components include:
- Compatible full-body safety harnesses with approved dorsal attachment points.
- Manufacturer-approved dorsal attachment connectors.
- Compatible engineered structural anchorage points.
- Certified fall-protection anchor connectors.
- Fall-clearance and rescue systems appropriate for the work environment.
Harness compatibility, anchor strength, connector geometry, and installation requirements must be verified against current manufacturer instructions.
## Cross-Referenced Models
The following FallTech models belong to the same 9-foot DuraTech Leading Edge SRL product family. They represent related configurations rather than guaranteed interchangeable replacements.
| Model | Configuration |
| -------- | ------------------------------------------------- |
| 83909TP5 | 9 ft, twin-leg, aluminum rebar hooks |
| 83909TP1 | 9 ft, twin-leg, steel snap hooks |
| 83909TP3 | 9 ft, twin-leg, steel rebar hooks |
| 83909TP6 | 9 ft, twin-leg, aluminum CE carabiners |
| 83909TP0 | 9 ft, twin-leg, alternate connector configuration |
| 83909SP1 | 9 ft, single-leg, steel snap hook |
| 83909SP3 | 9 ft, single-leg, steel rebar hook |
| 83909SP5 | 9 ft, single-leg, aluminum rebar hook |
| 83909SP6 | 9 ft, single-leg, aluminum CE carabiner |
The TP-series models use twin-leg configurations, while the SP-series models use single-leg configurations. Actual connectors, weights, and system approval vary by model.
## Manufacturing and Serial Number Information

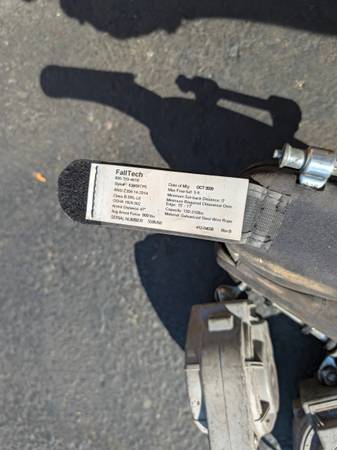

The photographed identification label includes:
| Marking | Identification |
| ----------------------- | -------------- |
| Manufacturer | FallTech |
| Style Number | 83909TP5 |
| Manufacturing Date | OCT 2020 |
| Serial Number | 5596490 |
| Label / Document Number | 412-04038 |
| Label Revision | Rev B |
| ANSI Standard | Z359.14-2014 |
Manufacturing date: October 2020 is explicitly printed on the label and is confirmed.
An assembly that has arrested a fall, has an activated energy absorber, fails inspection, or has an unresolvable safety history must not be returned to fall-arrest service unless the manufacturer explicitly permits it.
No representation is made that this used item is safe, certified, or approved for occupational fall protection.
## Quantity and Purchase Information
Total available
2 complete twin-leg assemblies
Listed price covers
1 assembly
Condition
Used / Untested
Each assembly consists of two retractable cable units, their associated rebar hooks, and the shared attachment/energy absorber components.
The photographs show the general condition of the available equipment. Cosmetic appearance and serial numbers may differ between units.
