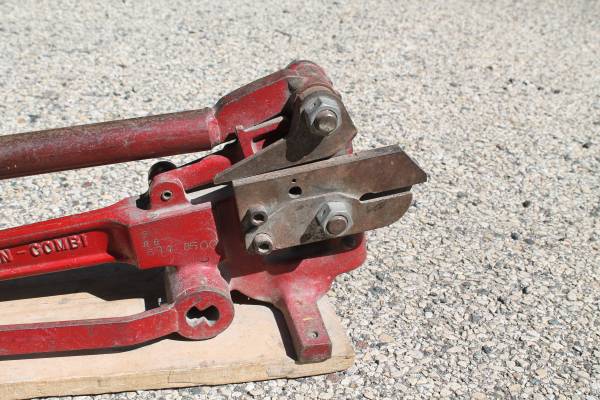

Shaw Bohn Combi Strapmaster 7 in 1 Tool Punch Model B Eagle Morlin - $450 (GLENVIEW)
QR Code Link to This Post
Portable - Manually Operated - One-Man Tool Shop
ON THE JOB SITE
General Features:
Portable - Manually Operated - One-man Tool shop - Model A StrapMaster, Punches & Dies for HVAC, garage door braces, brackets and hangers. Model A works with mild steel up to 1" wide.
This 7 in 1 tool will fabricate the custom brackets, hangers, and bracing you need to keep the job running.
The StrapMaster Cuts, Bends, Twists, Punches Steel Strapping and Cuts and Bends Rod. A great investment in your productivity.
The StrapMaster will pay for itself after just a few uses. For HVAC, garage door braces, brackets and hangers.
Model A works with mild steel up to 1" wide.
The 7 IN 1 TOOL fabricates the custom brackets, hangers and bracing you need to keep the job running. The 7 IN 1 TOOL cuts, bends twists, punches holes in strapping and also cuts and bends steel rod.
Model B: for HVAC, garage door braces, brackets and hangers, for masonry and working with stainless steel. Model B works with mild or stainless steel up to 1-1/2" wide.
-7.5 Ton Capacity
-Cuts 2" Steel Strap
-Cuts Steel Strap Up To 1/4" Thick
-Bends Steel Strap 1-1/2” Wide x 3/16"
-Twists Steel Strap 1-1/2" Wide x 3/16"
-Punches Holes in 1/8" Strap Up To 9/16" Max
-Punches Holes in 1/4" Strap Up To 3/8" Max
-Standard Punch Size 13/32" (Availbale 1/16" to 9/16" Standard)
-Cuts Round Steel Rod Up To 3/8"
-Bends Round Steel Rod Up To 3/8"
-Cuts Angle Iron - 2” x 2” x 1/4” Thick
-Working Material (Mild or Stainless Steel)
Cuts steel strap up to: 1/4" thick
Bends steel strap: 1-1/2" x 3/16"
Twists steel strap: 1-1/2" x 3/16"
Punches holes in 1/8" strap: 9/16" max
Standard Punch: 13/32" diameter
(Punch and die Sizes available: 1/16" - 9/16")
Cuts round steel rod up to: 3/8" diameter
Bends round steel rod up to: 3/8" diameter
Cuts angle iron: 2" x 2" x 1/4" thick
Weight: 39 lbs
Dimensions 40 x 7 x 9
Material Mild or Stainless Steel
Dimensions: 7 x 18 x 27
