RecPro 36" 12V DC RV Ceiling Fan 4-Speed Reversible Brushed Nickel - $55 (Glenview)
E Lake Ave near Waukegan Rd
condition:
like new
make / manufacturer:
RecPro
QR Code Link to This Post
Condition: Open Box. Fan is in its original RecPro cardboard packaging, which shows visible shelf wear, dents, crushed corners, creases, dirt, and packing tape. The package has not been opened or its contents individually inspected. Fan operation has not been tested.
Two (2) units available. Listed price is for ONE (1) boxed ceiling fan only, not both units.
## Detailed Description
The RecPro 36-Inch 12-Volt RV Ceiling Fan is a compact, energy-efficient, four-speed ceiling fan specifically designed for recreational vehicles, motorhomes, campers, travel trailers, and other applications equipped with compatible 12V DC electrical systems.
This configuration features a brushed nickel motor housing with black/oak fan blades, as identified by the checked selections on the original manufacturer's carton.
Its low-profile, close-to-ceiling design is especially useful in RV interiors where overhead clearance is limited. Unlike standard residential ceiling fans that require 120V AC power, this model operates directly from a compatible 12V DC power source.
The fan incorporates a four-blade design, reversible motor operation, and four selectable speed settings. The manufacturer's standard configuration uses a dedicated wall-mounted control switch to adjust fan speed and airflow direction.
The brushed nickel finish provides a modern metallic appearance, while the black/oak blade combination offers a versatile decorative style for RV living areas, bedrooms, and compact interiors.
## Features
- 12V DC operation: Designed for compatible recreational vehicle electrical systems.
- 36-inch nominal fan size: Compact ceiling fan for RVs, trailers, and motorhomes.
- Four-speed operation: Provides 25%, 50%, 75%, and 100% speed selections.
- Reversible airflow: Allows changing the fan's rotation direction for seasonal air circulation.
- Brushed nickel finish: Decorative metallic motor housing.
- Black/oak fan blades: Box identifies the selected blade color combination.
- Four-blade construction: Circulates air throughout compact interior spaces.
- Low-profile mounting: Close-to-ceiling installation minimizes overhead clearance requirements.
- Energy-efficient motor: Manufacturer specifies approximately 20 watts of power consumption.
- Double-sealed motor bearings: Designed for smooth operation and reduced maintenance.
- Hardwired installation: Uses a four-wire electrical connection.
- Wall switch control: Standard manufacturer configuration includes a dedicated speed and direction control switch.
## Specifications
| Specification | Details |
| ------------------------- | --------------------------------------------- |
| Manufacturer | RecPro |
| Product Type | RV Ceiling Fan |
| Product Series | RecPro 4-Speed 12V Ceiling Fan |
| Manufacturer SKU / Family | RP-FAN36-BN |
| Nominal Blade Span | 36 in. |
| Published Overall Width | Approximately 34 in. |
| Published Overall Height | 4.25 in. |
| Input Voltage | 12V DC |
| Rated Power | 20 Watts |
| Published Current Rating | 2 Amps |
| Number of Speeds | 4 |
| Speed Settings | 25%, 50%, 75%, 100% |
| Number of Blades | 4 |
| Housing Finish | Brushed Nickel |
| Blade Color | Black/Oak |
| Motor Direction | Reversible |
| Motor Technology | Brushless, per related product specifications |
| Motor Bearings | Double-Sealed |
| Mounting | Close Mount / Low Profile |
| Wiring | Four-Wire Connection |
| Controls | Dedicated Wall Switch |
| Lighting | No Integrated Light Kit Specified |
| Installation | Interior Ceiling Mount |
| Applications | RV, Camper, Motorhome, Travel Trailer |
| Condition | Open Box |
| Total Quantity Available | 2 |
| Quantity Per Purchase | 1 |
The electrical ratings, dimensions, and control specifications are published for the RecPro RP-FAN36-BN family. Exact contents and ratings should be checked against the actual fan and installation instructions.
## Motor and Electrical Information
The RecPro 36-inch fan uses a low-voltage DC motor designed for RV electrical systems.
| Motor Characteristic | Specification |
| --------------------------- | --------------------------------------------------------- |
| Motor Type | DC Ceiling Fan Motor |
| Rated Voltage | 12V DC |
| Published Power Consumption | 20W |
| Published Current | 2A |
| Speed Control | Four-Speed Electronic Control |
| Reversible Operation | Yes |
| Rotation | CWSE/CCWLE or CCWSE/CWLE, depending on selected direction |
| Bearing Type | Double-Sealed Motor Bearings |
| Electrical Connection | Four-Wire |
| Duty | Interior Ventilation / Air Circulation |
SE = shaft end; LE = lead end. The paired rotation directions describe the opposite viewing perspectives of a reversible motor, not a verified factory default direction.
Horsepower, precise RPM, motor service factor, shaft dimensions, and winding information are not published for this configuration. A separate run capacitor specification is not established.
## Four-Speed Operation
The standard wall control provides four fan-speed selections.
| Speed | Manufacturer Setting |
| ------- | -------------------- |
| Speed 1 | 25% |
| Speed 2 | 50% |
| Speed 3 | 75% |
| Speed 4 | 100% |
The percentages represent manufacturer control settings, not verified RPM or airflow values.
The reversible control allows the user to change airflow direction for cooling circulation or redistribution of warm air near the ceiling.
## Applications
- Motorhomes: Interior air circulation in living rooms and sleeping areas.
- Travel trailers: Low-profile ventilation and general air movement.
- Fifth-wheel campers: Supplemental airflow for RV living spaces.
- Camper conversions: Interior cooling and ventilation in compatible 12V systems.
- Park-model RVs: Air circulation where suitable DC electrical infrastructure is available.
- Off-grid cabins: Potential use with properly regulated 12V DC electrical systems.
- Specialty mobile interiors: Compact ventilation applications with adequate overhead clearance.
This fan circulates interior air and is not a substitute for a roof exhaust fan, ventilation opening, or air-conditioning system.
## Installation and Compatibility
The RecPro 36-inch ceiling fan is designed for hardwired installation on compatible 12V DC systems.
Important installation considerations:
- Requires a suitable 12V DC power supply.
- Uses a four-wire installation configuration.
- Designed to operate with its matching manufacturer-specified wall control.
- Not compatible with standard three-wire RecPro fan switches.
- Not designed for direct connection to 120V AC household power.
- Requires an appropriately supported ceiling mounting location.
- Must have sufficient clearance around and below the rotating blades.
RecPro specifically warns that its four-wire fan is incompatible with three-wire fan switches. The original matching switch is standard equipment for the product, but its presence in these boxes has not been verified.
## Related RecPro Models
| Model | Configuration |
| ----------- | -------------------------------------------- |
| RP-FAN36-BN | 36" nominal, 12V DC, brushed nickel, 4-speed |
| RP-FAN36-BK | 36" nominal, 12V DC, matte black, 4-speed |
| RP-FAN42-BN | 42" nominal, 12V DC, brushed nickel, 4-speed |
| RP-FAN42-BK | 42" nominal, 12V DC, matte black, 4-speed |
These are related models within the RecPro RV ceiling fan family, with varying housing finishes and blade spans. They are not necessarily interchangeable where installation clearances differ.
## Packaging and Condition Notes
The original carton clearly identifies the product as:
RecPro 4 Speed 12 Volt RV Ceiling Fan
The selection checklist on the end of the box shows:
- Housing Finish: 36" Brushed Nickel — selected
- Blade Color: Black/Oak — selected

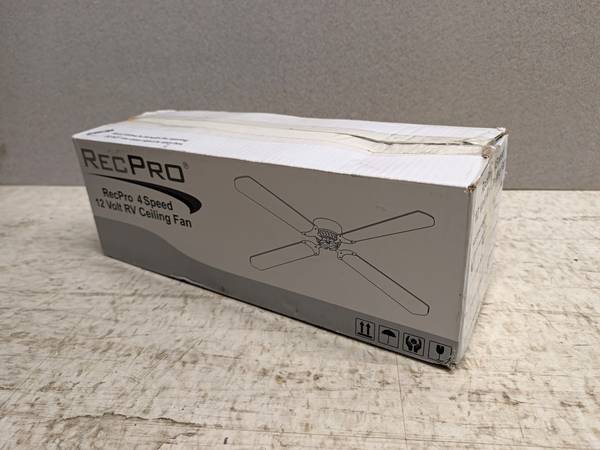

The photographs show a taped cardboard box with visible handling and storage wear, particularly along the top edges and corners. The interior contents are not pictured.
This listing identifies the product using the manufacturer's external packaging. Completeness, interior cosmetic condition, and actual fan operation have not been established.
## Quantity and Purchase Information
Two (2) boxed fans available — price is per one (1) fan.
Each purchase includes one original boxed RecPro ceiling fan package in open-box condition. The standard product configuration is a four-blade fan with matching wall control and installation hardware, but individual contents are unverified.
