1986 Cascade 36 Sailboat - $35,000 (Gig Harbor)
QR Code Link to This Post
There is an extra set of sails that will come with it and many service parts and boat stuff. All canvas is bright and in great condition, isinglass is clear. Bottom paint was done 2 years ago, hull and topsides are in solid condition.
Recent survey from March 2025 can be available for serious buyers. Here is some information on this particular vessel. Feel free to reach out with any questions. Asking price is $35,000 OBO. The vessel is located in Gig Harbor, WA.
Make and Model: 1986 Cascade CS 36
Designers: Mr. Robert Smith
Builder: Cascade Yachts/Yacht Constructors, Inc. (US)
Length, Beam, Draft: 35.56’ X 10’ X 5.60’, LWL 28.87’ (builder’s specifications).
Air Draft: I = 43’ (builder’s specifications).
Displacement: 12,500-lbs (dry, builder’s specifications).
Ballast: 4,433-lbs (builder’s specifications).
Hull Build Material: Molded FRP
Fasteners: Stainless steel.
Propeller Shafting: Austenitic stainless steel, 1.0” Ø.
Stern Bearings. Marine cutless.
Propeller Shaft Stuffing Box: PSS dripless.
Propeller: Bronze Dnya Jet-style, 15“ RH 8“ X 3 blade.
Rudder: FRP with stainless steel post.
Sea-Connections: Bronze hull valves (seacocks).
Bilge Pumps: (1) 12VDC Rule pump with automatic control, (1) 1-1/4” hand pump.
Sail Rig and Sails
Rig: Masthead sloop with deck stepped mast.
Spars: Aluminum alloy.
Sail Inventory: Working main and furling 130% Genoa. Doyle sails, very nice with little wear, less than 10 years old.
Sail Area: 590-ft² (standard head and main; builder’s specifications)
Standing Rig: 1X19 stainless steel wire shrouds and stays landed on side deck toe rail. Open barrel bronze turnbuckles and swaged terminal ends.
Running Rig: Braided yacht lines with Famet headsail furling system.
Winches: Lewmar (No. 16, 40), (with winch handles).
Reaching Pole: Whisker
Auxiliary Propulsion Machinery
Auxiliary Propulsion Machinery: Single (1) inboard naturally aspirated 3-cylinder Nanni 3.90HE marine diesel engine.
Horsepower Rating: 22.3hp at 3,600r/min (manufacturer’s specifications).
Engine Hours: ±1,637 (reported, new hour meter reads ±1,037).
Engine Cooling System: Pressurized fresh water with centrifugal circulating pump and seawater cooled heat exchanger.
Engine Exhaust: Water cooled exhaust manifold with wet exhaust/transom discharge.

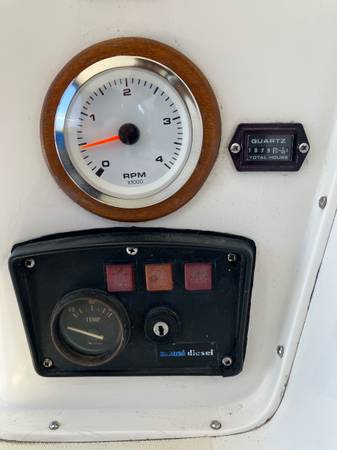

Instrumentation: Tachometer, coolant temperature. Engine oil pressure and alternator charging indicator lights.
Marine Transmission: Hurth HBW 100 3R 2.05:1 reduction ratio with straight prop line.
Tankage
Diesel Fuel Tankage and Capacity: (1) Aluminum alloy, 40-gallons (reported capacity).
Potable Water Capacity: (2) 35-gallon tanks (reported capacity) with Paloma LPG hot water heater.
Sanitary Waste Capacity and System: 22-gallon tank (reported capacity). Marine toilets with MSD Type III sanitary waste system.
LPG Fuel System: (2) 10-lb Aluminum-alloy fuel cylinders.
Electrical System
Voltage: 12VDC and 120VAC 60Hz.
Batteries: (1) Grp 27 12v, (4) HD 6v. Disconnects.
Battery Charger: Phase Three PT-25
AC Electrical System: Polarized 2-wire system with ground.
AC Shorepower: 30-amp 120VAC inlet.
Main Shorepower Disconnect Breakers: 30-amp double pole trip free circuit breakers. Blue Seas AC switchboards and voltmeter. Main panel board thermally imaged, no unusual heat signatures or anomalies noted
Helm, Navigation, and Communication Equipment
Steering: Hydraulic
Propulsion Controls: Cable.
Autopilot: Autohelm ST 6000
Steering Compass: Magnetic. No compass deviation tables sighted.
Navigation Aids: Garmin GPSMap 225, Raytheon RL70c, Autohelm depth finder, Autohelm wind indicator, Autohelm Tri-Data, inclinometer.
GPS Chartplotter: Yes
Depthfinder: Yes - Marine Radar: Yes - AIS: Class B.
Marine VHF Radiotelephone: SH GX2110 (fixed), SH HX870 (handheld).
Navigation Lights: Electric, required arc of visibility and luminosity cannot be guaranteed.
Deck General and Environmental
Anchor: Simpson Lawrance galvanized steel anchor with 250-feet of 5/16” galvanized steel chain and 250feet of Nylon rode (owner reported lengths). Anchor chain/rode not removed for inspection. Bitter end not sighted.
Deck Auxiliaries: Lofrans Royal manual windlass with wildcat.

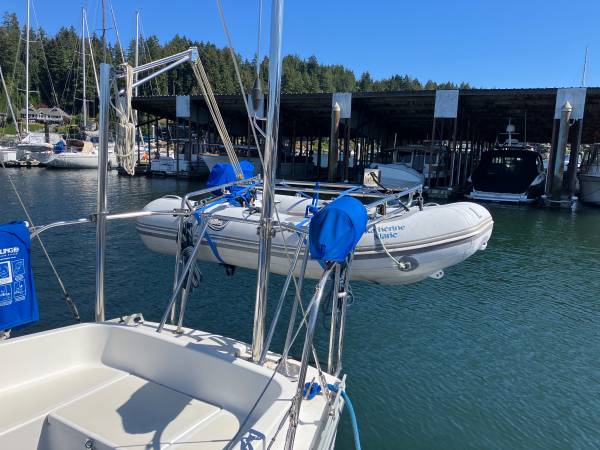

Dinghy: 2017 Achilles HB 250AL (ACH00089G617)
Davit System: Stainless-steel lift arm davits with rope falls. Spare Danforth steel anchor.
Interior Equipment and Appointments
Cabin Lighting: Electric
Galley: Sink, Wedgewood LPG galley stove, built-in Sea Freeze electric refrigerator/freezer, Kenmore microwave oven.
Potable Water System: Pressurized with electric pump.
HVAC: Force 10 LPG cabin heater.
Comments: Audio system, clock, barometer, temperature/humidity gauge. Interior finishes and soft goods found in good condition.
