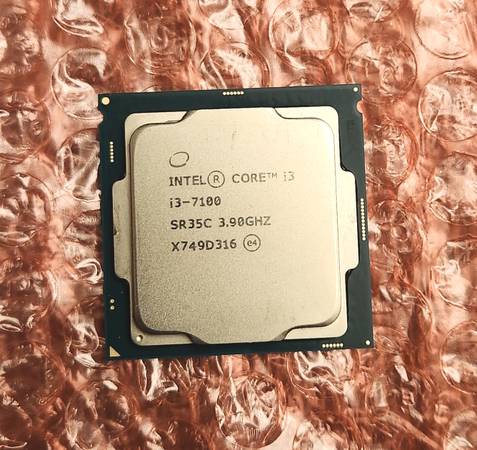

CPU intel Core i3 7100 3.9GHz (2 Core / 4 Thread) LGA1151 - $10 (Elk Grove / Laguna)
QR Code Link to This Post
. Works perfectly. Removed from working system.
Info: https://www.intel.com/content/www/us/en/products/sku/97455/intel-core-i37100-processor-3m-cache-3-90-ghz/specifications.html
Specifications
Product Collection 7th Generation Intel® Core™ i3 Processors
Code Name Products formerly Kaby Lake
Vertical Segment Desktop
Processor Number i3-7100
Lithography 14 nm
CPU Specifications
Total Cores 2
Total Threads 4
Processor Base Frequency 3.90 GHz
Cache 3 MB Intel® Smart Cache
Bus Speed 8 GT/s
TDP 51 W
Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
ECC Memory Supported ‡ Yes
GPU Specifications
GPU Name‡ Intel® HD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x5912
Expansion Options
Scalability 1S Only
PCI Express Revision Up to 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Turbo Boost Technology ‡ No
Intel® Hyper-Threading Technology ‡ Yes
Intel® Transactional Synchronization Extensions No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Security & Reliability
Intel® Secure Key Yes
Intel® AES New Instructions Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Intel® Stable IT Platform Program (SIPP) No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Ensure your motherboard is compatible with this processor before purchase.
