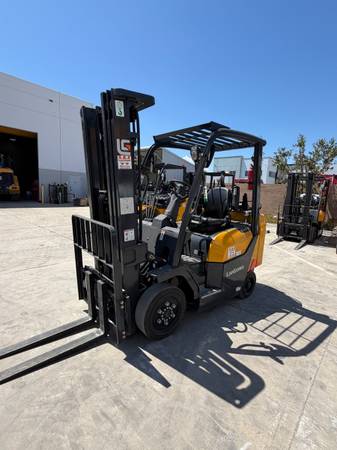

Liugong CLG2025G-C - $22,500

condition: excellent

make / manufacturer: LiuGong

model name / number: CLG2025G-C

more ads by this seller

QR Code Link to This Post

LiuGong CLG2025G-C LPG Cushion Tire Forklift 5,000 lb Capacity | Indoor-Ready | EPA & EU Stage V Compliant Overview The LiuGong CLG2025G-C is a Class IV internal combustion forklift delivering 5,000 lbs (2,200 kg) capacity at a 24-inch load center. Powered by the Kubota WJ2503-L-E3 engine, this unit offers reliable performance with clean emissions, making it suitable for warehouses, distribution centers, and other indoor environments. Engine Specifications Parameter Detail Engine Model Kubota WJ2503-L-E3 Type 4-cylinder LPG Displacement 2.491 L Horsepower 55.3 HP @ 2,600 RPM Torque 175 N·m @ 1,200 RPM Emissions Certification EU Stage V and EPA compliant Mast and Carriage Parameter Detail Mast Type 3-stage full free-lift Maximum Fork Height 185" (4,700 mm) Free Lift 46" (1,170 mm) Lowered Mast Height 87.2" (2,215 mm) Extended Mast Height 227.3" (5,774 mm) Mast Tilt 6° forward / 6° backward Carriage Width 36.2" Fork Size 42.1" x 4.8" x 1.6" Minimum Fork Spread 9.6" Maximum Fork Spread 35.6" Auxiliary Hydraulics Pre-plumbed for attachments Hydraulic Valve Options 2-way, 3-way, or 4-way configurations available on request Performance Data Parameter Loaded Unloaded Travel Speed 10.6 mph 10.6 mph Lift Speed 112 fpm 116 fpm Lower Speed 97.6 fpm 97.6 fpm Maximum Drawbar Pull 4,290 lbs Gradeability 30% 28% Tires and Dimensions Parameter Detail Front Tires 21x7-15 cushion Rear Tires 16x5x10-1/2 cushion Wheelbase 58.5" Front Tread 35" Rear Tread 36.2" Minimum Outside Turning Radius 78.7" Right-Angle Stack (including load length) 143.3" Weights and Axle Loads Condition Front Axle Rear Axle Total Loaded 11,900 lbs 3,670 lbs Unloaded 1,454 lbs 4,844 lbs 8,514 lbs Chassis Measurements Parameter Detail Length to Fork Face 92.1" Overall Width 43.3" Overhead Guard Height 83.5" Ground Clearance (below mast, loaded) 3.1" Ground Clearance (center of wheelbase) 3.9" Brakes Type Operation Service Brakes Foot-operated hydraulic Parking Brake Hand-operated mechanical Available Optional Equipment Non-marking tires Foam-filled tires 72-inch forks Enclosed cab Side shifter Fork positioner 3-way hydraulic valve 4-way hydraulic valve
