Technics SL-BD20D Turntable - $90 (Denton)
QR Code Link to This Post
The model is a semi-automatic, belt-driven turntable produced from 1990's through early 2000's. Known as an incredibly robust entry-level "workhorse," it was engineered around the plug-and-play T4P P-Mount standard, prioritizing extreme ease of use and low mechanical maintenance.
This is a a very nice semi automatic turntable, that's been tested, works well and operates as it should.
Comes with:
- Dust cover in good shape, see pictures.
- Technics P34 cartridge that sounds amazing. (Cartridge sells on eBay for $40-$50 by itself).
- RCA cables and new ground wire.
Technical Specifications:
- Drive System: Belt drive powered by an electronically controlled DC Servo motor.
- Speeds: 33-1/3 and 45 RPM (electronic toggle switch).
- Wow & Flutter: 0.045% WRMS (exceptionally low for a plastic-plinth budget belt drive).
- Rumble: -70 dB.
- Platter: 312mm aluminum die-cast.
- Tonearm Type: Static balance, straight tonearm with a specialized plug-in T4P connector.
- Tracking Force (Stylus Pressure): Pre-set at a fixed 1.25 grams (+/- 0.25g range).
- Factory Cartridge: Technics moving magnet (MM) stereo cartridge paired with an EPS-34CS conical stylus.
Dimensions (W x H x D): 16-7/8" x 3-13/16" x 15-3/4" (430 x 93 x 375 mm).
Weight: 7.9 lbs (3.6 kg).
Pros: Why It's Highly Regarded:
Zero-Fuss Setup: Because it utilizes the P-mount standard, the tracking force, cartridge alignment, and anti-skate are entirely pre-set at the factory. You never have to deal with alignment protractors or digital tracking force scales. You simply plug a cartridge into the tip, tighten one side screw, and it plays perfectly at exactly 1.25g.
Vinyl Safety Integration: The semi-automatic mechanism ensures that when the record finishes, a mechanical trigger picks up the tonearm and returns it to its cradle automatically before shutting down the motor. It is a fantastic safety feature if you tend to wander away or fall asleep while listening.
Reliable Performance: Mechanically, these are incredibly reliable. The DC servo control holds its speed dead-on, and the motor generates very little audible rumble (-70dB) compared to modern ultra-budget plastic turntables.
Cons: The Trade-offs
Plastic-Heavy Construction: To keep the price low, the lower plinth and chassis are made mostly of molded plastic. While Technics treated the base with an anti-resonant coating, it is still lightweight and susceptible to footstep vibrations if placed on an unstable shelf.
Zero Adjustment Flexibility: If you have an unevenly worn record or an aftermarket cartridge that tracks better at 2.0g, you cannot adjust the arm weight or anti-skate. You are entirely locked into the 1.25g T4P spec.

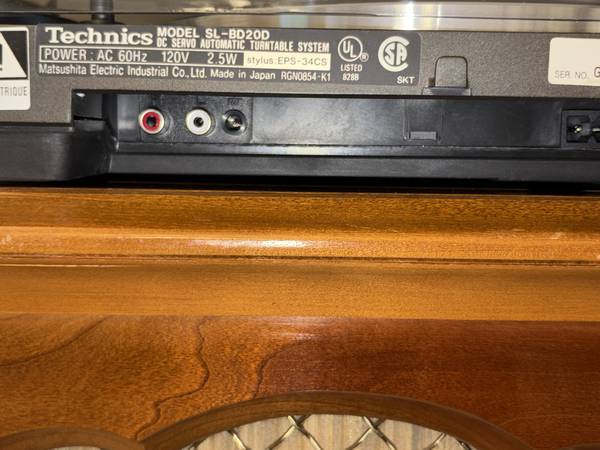

Proprietary Ground Cable: Like many vintage Technics decks, it utilizes a proprietary narrow mini-plug ground wire. If yours goes missing, standard bare wires won't stay securely inside the jack, and you'll get a massive, loud audio hum until you source an exact Technics-style replacement wire. (New ground wire included)
Don't need help selling and if the add is up, it's available.
Thanks for checking it out.
First $90 or best offer.
Keywords: Pioneer, Kenwood, Sony, Audio-Technica, Fluance, Pro-Ject, JVC, Victrola, record player
