Car storage solution: double parking lifts! - $7,495 (Bow NH)
1298 RT 3A
condition:
new
QR Code Link to This Post
Store/warehouse: 1298 Route 3A Bow NH
No sales tax!
Get your vehicles out of the snow and into the garage! Installation available, call for quote or details, show contact info
AMGO 409-DP $7495

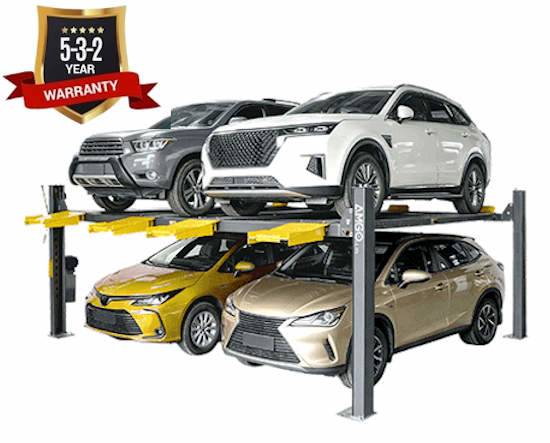

A low profile space-saving lift that can accommodate 2 parking positions for 4 vehicles. It’s powerful and can lift up two vehicles up to 9,000lbs (single car max 6,000lbs). It’s safe and easy to operate, equipped with dual safety locks, a patented concealed safety control device, and a single-point manual release. Your varying needs will be met with this multifunctional lift!
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
Lifting capacity: 9,000lbs, max. car weight: 6,000lbs;
Low profile design ensures easy load for low-clerance vehicles;
Dual safety locks and a cable-slack protection system come standard;
AMGO’ patented design: concealed safety lock control device with a manual single-point lock release;
Foldable drive-on ramps come standard;
Exclusive: Double-S shaped columns for increased strength;
Non-slip diamond platforms;
Specifications
Model 409-DP
Lifting Capacity 9,000 Ibs
Lifting Time 100s
A: Overall Length (Inc Ramps) 208 1/16"
B: Outside Edge of Crossbeams 167 5/8"
C: Overall Width 190 9/16"
D: Width Between Columns 181"
E: Drive Through Width 169 13/16"
F: Overall Height 82 7/8"
G: Minimum Height 5 15/16"
H: Max. Lifting Height H 73 5/8"
Max. Lock Height 70 7/8"
I: Max. Underneath Height 68 7/8"
Max. Underneath Lock Height 66 1/8"
J: Width Between Runways 37"
K: Overall Width of Single Parking Unit 74 7/16"
L: Width Between Two Parking Units 13 3/4"
Gross Weight 2,771 lbs
Motor 110V/60HZ 1.0HP
409-DPX $8295
As the longer and higher lifting version of the 409-DP, this model creates the critical height needed to park SUVs, light trucks, and other elevated vehicles underneath, unlocking greater versatility for your space.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• Lifting capacity: 9,000lbs, max. car weight: 6,000lbs;
• Low profile design ensures easy loading for low-clerance vehicle;
• Dual safety locks and a cable-slack protection system come standard;
• AMGO’s patented design concealed safety lock control device with manual single-point lock release.;
• Foldable drive-on ramps come standard;
• Exclusive: Double-S shaped columns for increased strength
• Non-slip diamond platforms;
• Multiple lock points secure the vehicles during lifting and storage;
• Pull rope comes standard;
Specifications
Model 409-DPX
Lifting Capacity 9,000 Ibs
Lifting Time 120s
A: Overall Length (Inc Ramps) 238 5/8"
B: Outside Edge of Crossbeams 198 1/8"
C: Overall Width 190 9/16"
D: Width Between Columns 181"
E: Drive Through Width 169 13/16"
F: Overall Height 96 5/8"
G: Minimum Height 5 15/16"
H: Max. Lifting Height 87 7/8"
Max. Lock Height 85 1/8"
I: Max. Underneath Height 83 1/8"
Max. Underneath Lock Height 80 3/8"
J: Width Between Runways 37"
K: Overall Width of Single Parking Unit 74 7/16"
L: Width Between Two Parking Units 13 3/4"
Gross Weight 3,018 lbs
Motor 110V/60HZ 1.0HP
